Graph Data Structure Visualization

Graphs provide a structured way to represent relationships between entities. They are widely used to model complex systems, such as software architectures, data pipelines, social networks, and recommendation engines, where connections are just as important as the entities themselves.

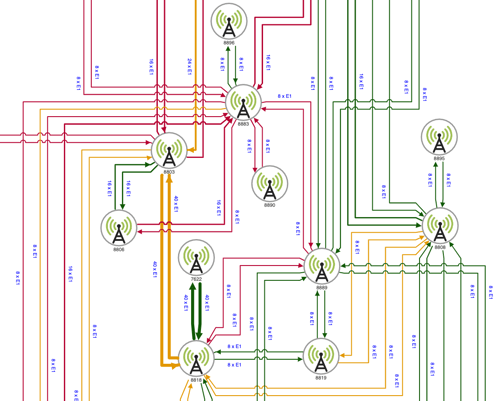

An example graph data structure visualization of a complex systems model.

While graphs can be represented through code or adjacency matrices, those formats often obscure patterns, flow, and hierarchy. Visualization makes structure visible. It reveals clusters, bottlenecks, dependencies, and key nodes that shape the system's behavior.

This article offers a detailed guide to graph data structures and their visual representation. It covers core components, data formats, layout strategies, tools, and real-world applications to help you build, understand, and communicate graph-based systems more effectively.

Core Components of a Graph

Every graph consists of two fundamental elements: vertices and edges. Vertices are the individual units or entities in the structure, often used to represent real-world objects such as users, servers, cities, or documents. Edges define the relationships or connections between these entities.

Graphs can be either directed or undirected. In a directed graph, edges have a specific direction, indicating that they go from one vertex to another, thereby representing one-way relationships. For instance, in a citation network, if paper A cites paper B, the direction of the citation matters. In contrast, an undirected graph models symmetric relationships, such as friendships in a social network, where a connection implies mutual association.

Another important distinction is between weighted and unweighted graphs. In weighted graphs, edges carry numerical values that can represent distance, cost, or capacity. These weights are critical for algorithms that depend on optimization, such as shortest path calculations. In unweighted graphs, all connections are considered equal.

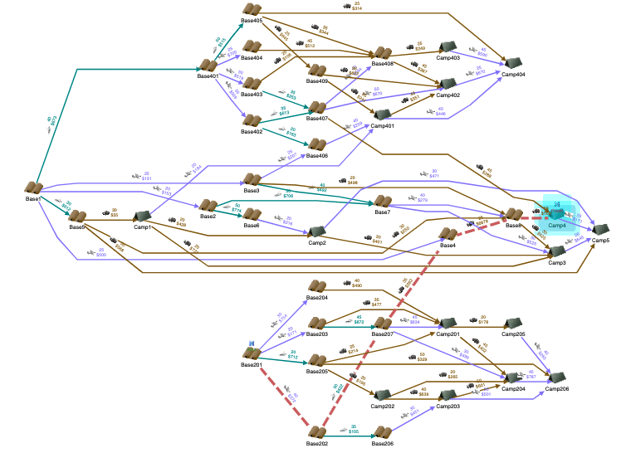

An example graph visualization illustrating edges weighted by distance.

Understanding the type and nature of vertices and edges in a graph is foundational before working with more complex operations such as traversal, analysis, or visualization.

Graph Data Structure Visualization and Representation Methods

Before a graph can be visualized or processed, it must first be represented in a format that computers can efficiently interpret and manipulate. The choice of representation has a direct impact on the performance of algorithms and the clarity of graph data structure visualization. The three most common methods for representing graphs are adjacency matrices, adjacency lists, and edge lists.

An adjacency matrix is a two-dimensional array in which each cell indicates whether a connection exists between two vertices. In weighted graphs, this cell may hold the weight of the edge rather than a simple binary value. This method enables constant-time edge lookups but can be memory-intensive, especially for sparse graphs.

An adjacency list maps each vertex to a list of its neighboring vertices. This structure is more memory-efficient for graphs with relatively few edges and provides a more intuitive way to understand the connectivity, especially when working with traversal or pathfinding algorithms.

An edge list represents the graph as a simple collection of vertex pairs, optionally annotated with weights. Although compact and easy to implement, it is less suitable for operations that require frequent or fast neighbor access. However, edge lists are often used when graph data is imported from external systems or when preparing data for graph visualization tools.

Selecting the appropriate graph representation method depends on the graph's size, density, and the specific visualization or analysis tasks being performed. A well-chosen representation not only optimizes processing but also enhances the quality and responsiveness of graph data structure visualization.

Static Versus Interactive Visualization Methods

Graph visualizations can be categorized based on how users interact with the output. In static visualization, the graph is rendered as a fixed image or diagram. This format is commonly used in documentation, reports, and presentations, where clarity and layout stability are prioritized. Static views are typically generated using layout algorithms that position nodes and edges in a way that preserves readability and structural meaning.

While static visualizations are effective for small or moderately sized graphs, they can become difficult to interpret as the number of elements grows. Once rendered, these visuals cannot be rearranged, filtered, or queried, which limits their utility in exploratory analysis.

Interactive visualizations, in contrast, enable users to engage with the graph dynamically. They can zoom, pan, search, highlight nodes, adjust layouts in real time, and apply filters based on attributes or connectivity. These capabilities are essential when working with large-scale graphs or evolving data, such as real-time traffic flows, changing relationships in financial networks, or live monitoring of system dependencies.

A Guide to Graph Data Structure Visualization

Step-by-Step Workflow for Graph Data Structure Visualization

This graph data visualization guide walks you through the full process, from raw data to visual strategy. Creating a meaningful graph visualization involves more than rendering nodes and edges on a canvas. The process typically begins with data preparation. This includes defining the entities and relationships to be visualized, selecting relevant attributes, and transforming the data into a format compatible with visualization tools or libraries.

Once the graph data is structured, the next step is to choose an appropriate layout algorithm. The layout determines how the nodes will be arranged in space. Depending on the size and type of graph, layouts can emphasize different aspects, such as hierarchy, symmetry, clustering, or spatial proximity. A suitable layout enhances clarity and draws attention to relevant features without distorting the structure.

After the layout is applied, visual encoding takes effect. Node size, color, edge thickness, and labels can be mapped to data attributes such as centrality, type, frequency, or direction. These encodings add depth to the visualization, enabling viewers to interpret not only the structure but also the significance of the elements within it.

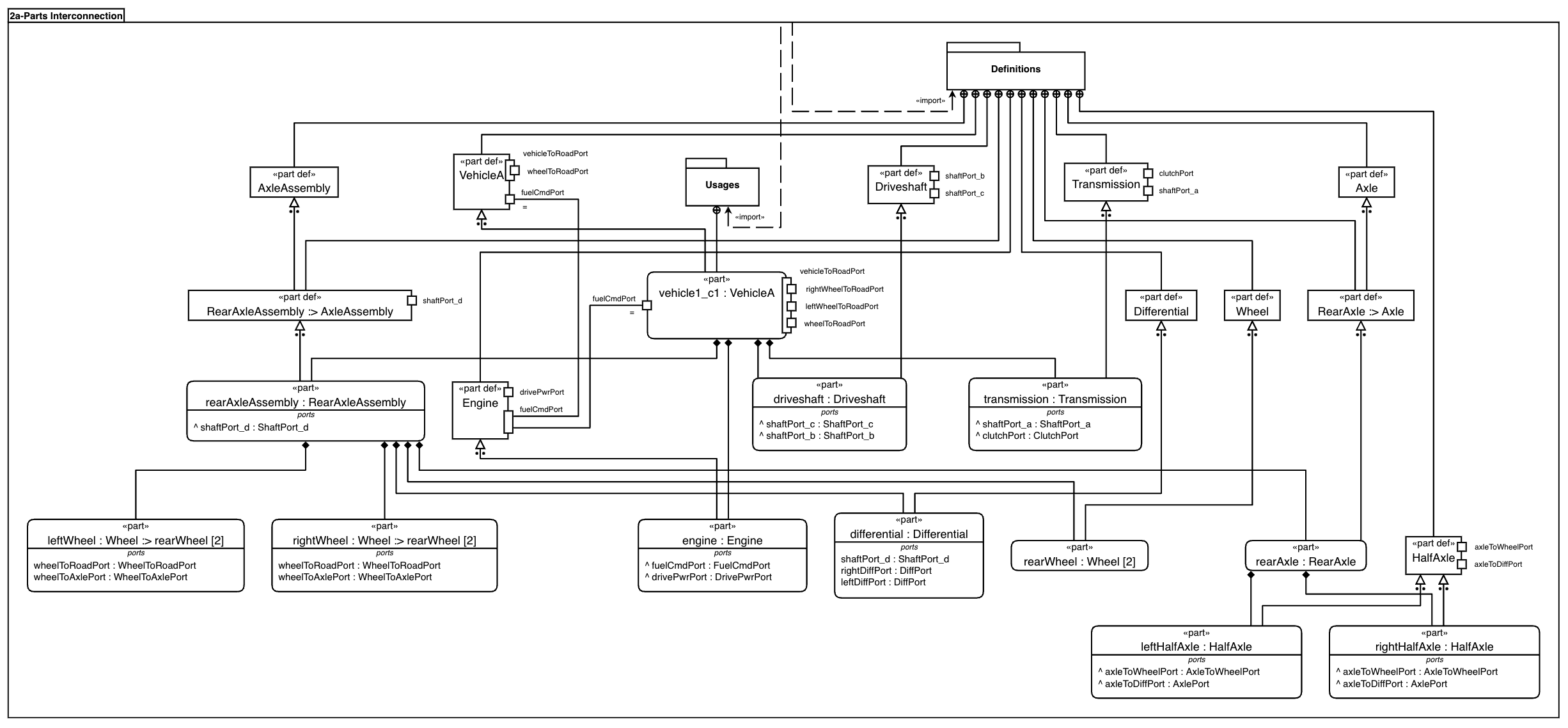

An example graph visualization produced with Tom Sawyer Perspectives illustrating visual encoding of nodes and edges to enhance interpretation.

The final stage involves refinement and testing. Adjustments to spacing, color palettes, interaction options, and filtering capabilities are often necessary to ensure the visualization serves its intended purpose, whether it’s for analytical exploration, operational monitoring, or communicating findings.

Layout Techniques and Visual Strategies

Different layout techniques reveal different aspects of a graph’s structure. The choice of layout depends on the graph's size, data density, and the relationships you aim to highlight.

Force-directed layouts simulate physical repulsion and attraction to arrange nodes in an organic manner. Densely connected nodes cluster naturally, making these layouts effective for exploring overall connectivity and network cohesion.

Hierarchical layouts organize nodes into levels based on directional relationships. They are well-suited for workflows, dependency trees, and organizational charts, where the order of execution or influence matters.

Circular layouts position nodes around a circle, grouping related elements. They are useful for spotting symmetry and cycles, but can become crowded with dense graphs.

Other proprietary layout styles exist, such as orthogonal layout and bundle layout by Tom Sawyer Software. These layout styles are best suited to large and dense graphs or where clean, overlap-free drawings are critical.

Each layout method emphasizes specific patterns while potentially obscuring others. Choosing the right strategy often involves testing multiple options and aligning the visual structure with the analytical purpose of the graph. One type of layout may work well to identify a starting point for exploration, while another type is needed when drilling into a context of interest.

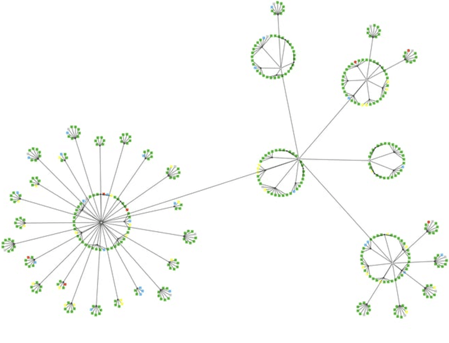

An example circular graph layout that highlights groups of nodes and symmetries.

Best Practices for Graph Data Structure Visualization

A graph visualization should do more than display data. It should guide interpretation. Achieving that requires attention to both visual clarity and analytical usefulness. Poor design choices can make even simple graphs unreadable, while thoughtful decisions can make complex networks accessible to a broad audience.

One of the core principles is minimizing visual clutter. Overlapping nodes, tangled edges, and excessive labels often overwhelm the viewer, obscuring key structures. Reducing the number of visible elements through filtering or abstraction can improve clarity without compromising the overall message.

Consistent and meaningful visual encoding is equally important. If node size represents degree centrality in one part of a graph and some unrelated property elsewhere, confusion will arise. Visual cues, such as color and thickness, should correspond to well-defined attributes and be applied uniformly throughout the visualization.

In some analysis domains, visual languages are already defined, and following existing conventions will facilitate interpretation. Substituting generic node shapes or edge types for industry standard or product-standard visual elements can reduce the time it takes for users to orient to and understand a graph visualization.

Labeling also requires balance. Labels are critical when identification is necessary, but they can quickly become noise in dense graphs. Consider using progressive disclosure techniques, such as on-hover details or contextual highlighting, to maintain focus while not sacrificing information.

Finally, it is essential to evaluate the visualization not only aesthetically but also functionally. A visually appealing layout that hides central nodes or distorts connection patterns defeats the purpose. The goal is to make structure and meaning visible without imposing artificial order.

Tools for Visualizing Graph Databases

Visualizing data from graph databases requires tools that support scale, interactivity, and structural nuance. These tools must go beyond rendering connections. They should accommodate live updates, allow flexible layout control, and integrate with surrounding systems or workflows.

For example, platforms like Tom Sawyer Perspectives are built to work directly with graph databases, supporting native models without the need for extensive transformation. Visualizations can reflect real-time changes, helping teams monitor evolving systems or explore dynamic relationships in complex domains.

Customizable layout options, including hierarchical, radial, or constraint-based arrangements, enable the highlighting of workflows, dependencies, or clustering patterns, depending on the task. This level of control allows users to adapt the visualization to the structure of their data, not the other way around.

In environments where data security, system integration, or deployment flexibility are priorities, visualization frameworks that support embedding into internal tools or enterprise dashboards offer additional value. Capabilities such as interactive filtering, drill-down navigation, and linked data views help users move between overviews and detail-level insights without losing context.

Such tools are often used in fields such as systems engineering, telecommunications, or knowledge management, where understanding how components relate is crucial to analysis, optimization, and operational decision-making.

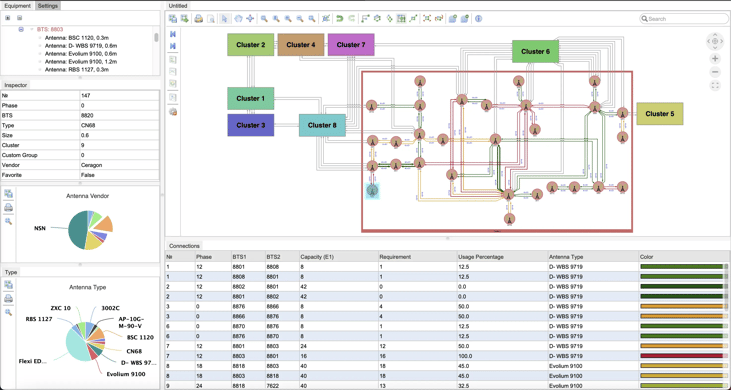

An example interactive application produced with Tom Sawyer Perspectives for real-time network monitoring.

Choosing Between Web-Based and Desktop Tools

Selecting the right environment for graph visualization depends on how the visual output will be used, maintained, and embedded into broader workflows.

Web-based tools are designed for deployment in distributed systems and browser-based applications. They support interactivity such as zooming, filtering, and live data updates, and are well-suited for use in dashboards, monitoring tools, and collaborative platforms. These solutions are often built with JavaScript libraries and can be integrated with APIs, backend services, or graph databases.

Desktop tools, on the other hand, are installed locally and typically offer more advanced control over layout, styling, and data manipulation. They are often used for handling sensitive datasets, producing detailed figures for documentation or research, or running in environments where cloud access is restricted.

While both approaches serve specific needs, many teams combine them to meet their requirements. Desktop environments are frequently used for model building, iterative refinement, or exporting high-quality static views. At the same time, web-based platforms enable real-time interaction, sharing, and integration with live data sources.

Visualizing Graph Algorithms

Interactive Visualization of DFS and BFS

Depth-First Search (DFS) and Breadth-First Search (BFS) are foundational graph traversal algorithms used in a wide range of applications, including pathfinding, cycle detection, and connectivity analysis. While these algorithms are typically introduced through code or pseudocode, their behavior becomes significantly clearer when visualized.

In a DFS visualization, the algorithm explores as far as possible along each branch before backtracking. Visually, this can be represented by coloring nodes and edges as they are visited, showing the recursive path unfolding through the graph. The depth-first nature is often reflected in the structure of the traversal tree that emerges.

BFS, on the other hand, explores neighbors level by level, starting from the source node. In a visualization, this process reveals concentric layers of nodes as the algorithm moves outward. Each layer corresponds to nodes that are equidistant from the starting point in terms of the number of edges they have.

Interactive visualizations of DFS and BFS not only make these differences obvious but also support educational use, debugging, and understanding of graph topology. Animations that highlight the order of visitation and queue or stack states can reveal how traversal strategies affect performance and outcome.

Visualizing Shortest Path Algorithms

Shortest path algorithms are used to identify the most efficient route between two nodes in a graph. These algorithms have broad applications in navigation systems, network optimization, and resource planning. Visualizing how they operate helps to demystify their internal logic and illustrates how changes in graph structure or edge weights affect outcomes.

One of the most well-known shortest path algorithms is Dijkstra’s algorithm, which calculates the minimum total weight required to reach each node from a given source. In a visualization, this process is often shown by gradually expanding the set of visited nodes, updating tentative distances, and eventually marking the shortest route with a highlighted path.

Another example is the A* algorithm, which builds on Dijkstra’s method by incorporating heuristics to estimate distance to the target. This makes it especially efficient in spatial graphs where the goal location is known. In visual terms, A* often appears more focused in its search, narrowing in on the target instead of exploring all directions equally.

By animating node selection, edge relaxation, and path reconstruction, visualizations of shortest path algorithms clarify why specific paths are chosen and how efficiency is achieved. This is particularly useful when comparing different strategies or demonstrating the effect of weighted versus unweighted edges.

Spanning Tree Layouts and Simulations

A spanning tree is a subgraph that connects all nodes in an undirected graph without forming any cycles, using the minimum number of edges. Visualizing spanning trees helps to understand concepts such as network efficiency, redundancy elimination, and the foundations of graph-based optimization.

Algorithms such as Prim’s and Kruskal’s are commonly used to construct minimum spanning trees, trees that connect all vertices with the smallest possible total edge weight. These algorithms differ in approach: Prim’s grows the tree by expanding from an initial node, while Kruskal’s starts by selecting the smallest edge and continues adding edges that do not form cycles.

In a visual simulation, the formation of a spanning tree can be shown step by step. Nodes are incrementally connected, and edges are evaluated, either accepted or rejected, based on whether they maintain the tree properties. Accepted edges may be highlighted progressively, with corresponding updates to the total weight or connectivity graph shown alongside.

Spanning tree visualizations are especially valuable when teaching optimization or when analyzing physical network layouts such as utility grids or communication systems. They enable users to observe how different strategies yield similar results and identify where inefficiencies or alternative paths may exist.

Understanding Topological Sorting Through Visualization

Topological sorting is used to linearly order the nodes of a directed acyclic graph (DAG) in such a way that for every directed edge from node A to node B, node A appears before node B in the ordering. This concept is foundational in scenarios involving precedence, such as task scheduling, dependency resolution, and build systems.

Visualizing topological sorting helps clarify how dependencies influence the order of execution. The process typically begins by identifying nodes with no incoming edges, which can be executed or processed immediately. As these nodes are removed from the graph, their outgoing edges are also eliminated, revealing the next set of eligible nodes. This continues until all nodes are ordered or a cycle is detected.

In a visual representation, the progression can be shown by highlighting selected nodes and dynamically collapsing their dependencies. The resulting sequence is often laid out along a horizontal or vertical axis, making the flow of execution and dependency hierarchy easy to trace.

Such visualizations are particularly useful when explaining the algorithm to others, debugging scheduling issues, or analyzing data pipelines where ordering constraints are critical.

Practical Applications of Graph Visualization

Visual Exploration of Social Networks

Graph visualization is frequently applied in the analysis of social networks, where individuals or entities are represented as nodes, and interactions or relationships are modeled as edges. By visualizing these networks, it becomes possible to uncover patterns such as community structures, influence hierarchies, and isolated users.

For example, clusters of densely connected nodes may indicate tight-knit communities or subgroups within an organization. Centrality metrics, when visualized, help identify influential individuals, those with the most connections or those acting as bridges between different groups. These insights are often difficult to detect through raw data or summary statistics alone.

Example of social network analysis highlighting influential individuals in a criminal network.

Interactive visualization further enhances this analysis by allowing users to explore specific individuals, filter by relationship type, or compare subgraphs. This enables both high-level understanding and detailed exploration of relational dynamics within large, complex datasets.

Understanding Recommendation Engines

Many recommendation systems rely on graph structures to model user-item relationships and to infer preferences based on indirect connections. In this context, nodes often represent users and items, while edges indicate interactions such as purchases, views, or ratings.

Visualizing these relationships can reveal how recommendations are generated and why certain items are suggested. For instance, two users connected by similar item interactions may form a cluster, indicating that they share common interests. Items that are frequently linked to multiple clusters may represent popular or broadly appealing options.

Graph visualization helps explain the logic behind recommendation outputs by making the underlying structure transparent and clear. It supports trust and interpretability in systems that might otherwise feel opaque or algorithmically distant. Moreover, developers and analysts can use these visuals to refine recommendation logic, detect anomalies, and improve algorithmic fairness.

Such applications illustrate how graph visualization is not only useful for analysis but also as a bridge between complex models and user understanding.

Monitoring Network Structures and Dependencies

In infrastructure and systems engineering, graph visualization plays a central role in mapping and monitoring the dependencies between services, hardware, and data flows. Each component of a system, whether it's a server, database, API, or microservice, can be represented as a node, with edges indicating connections, dependencies, or data transfer.

By visualizing these structures, teams gain insight into how components interact, identify potential bottlenecks, and determine which services are critical to the overall system function. This becomes especially important in dynamic environments, such as distributed systems or cloud-native architectures, where configurations change frequently.

Visualization enables real-time diagnosis. For instance, when a component fails or slows down, its relationships can be immediately assessed: which other components rely on it, which services might be affected downstream, and where redundancy might exist. This reduces response time during incidents and facilitates the planning of more resilient architectures.

Graph views also assist in change impact analysis. Before modifying or deprecating a component, teams can trace its connections and understand the scope of its influence. This reduces the risk of unintended disruptions and improves decision-making across teams.

Visual Interfaces for Knowledge Graphs

Knowledge graphs model relationships between concepts, entities, and facts in a way that reflects real-world semantics. They are widely used in domains such as search, enterprise data integration, and artificial intelligence. Given their complexity and large scale, visualization is essential for making knowledge graphs navigable and interpretable.

A visual interface for a knowledge graph enables users to explore entities and their relationships without needing to write queries. Nodes can represent concepts such as people, organizations, or events, while edges denote the nature of their relationships, for example, “founded,” “employed by,” or “located in.” Visualization brings these connections to the surface, revealing how information is structured and where gaps or redundancies may exist.

Such interfaces are often interactive, supporting exploration by expanding nodes, filtering by type, or focusing on specific subgraphs. This is particularly useful in knowledge management systems, where understanding context and lineage is key to trust and traceability.

Beyond exploration, visual interfaces also support validation and refinement of the knowledge graph itself. By making relationships visible, they help detect incorrect links, missing entities, or inconsistent labeling, which can then be corrected through editorial or automated processes.

About the Author

Caroline Scharf, VP of Operations at Tom Sawyer Software, has 15 years experience with Tom Sawyer Software in the graph visualization and analysis space, and more than 25 years leadership experience at large and small software companies. She has a passion for process and policy in streamlining operations, a solution-oriented approach to problem solving, and is a strong advocate of continuous evaluation and improvement.

FAQ

What Are the Best Tools for Graph Visualization?

The best tool depends on the scale of your data, your technical environment, and your goals. For web-based, interactive visualizations, libraries like D3.js and Cytoscape.js are widely used. For static or exploratory use within Python, NetworkX is commonly used with Matplotlib or Plotly. For enterprise applications, tools that integrate directly with graph databases, such as Tom Sawyer Perspectives, provide more tailored functionality.

How Can I Visualize Graph Data from a Database?

To visualize graph data from a database, the typical workflow involves querying the graph structure (nodes and relationships) using a graph query language, such as Cypher, transforming the results into a usable format (e.g., JSON or CSV), and feeding that data into a visualization tool or library. Many modern graph databases support direct export or include built-in visualization features.

What Python Libraries Support Graph Visualization?

Several Python libraries are designed for graph visualization, each serving different needs. NetworkX is commonly used for building and analyzing graphs and includes basic drawing capabilities. Plotly and PyVis provide interactive rendering capabilities in notebooks and web applications. Graph-tool provides advanced layout algorithms and is optimized for performance with large graphs.

Can Graphs Be Visualized at Large Scale?

Yes, but scaling visualization for large graphs requires careful consideration. Rendering thousands of nodes and edges can overwhelm browsers or visualization engines; therefore, techniques such as progressive loading, clustering, filtering, and level-of-detail management are often employed to mitigate this issue. Tools built for performance, such as Sigma.js or proprietary systems with GPU acceleration, are better suited for visualizing graphs at scale.

Platforms like Tom Sawyer Perspectives provide multiple tools for managing the size and complexity of very large graphs to produce effective user experiences with massive data sets.
