BFS Graph Visualization: Step-by-Step Guide

Breadth-First Search (BFS) is a key algorithm for exploring graphs—but understanding its behavior isn’t always straightforward from code alone. With graph visualization, we can see exactly how BFS moves through a network, level by level, revealing structure, distance, and connectivity.

In this guide, you'll learn how to bring BFS to life visually—whether you're studying the algorithm, debugging graph logic, or building interactive tools that make traversal easier to understand and explain.

What Is BFS and Why Visualize It?

In computer science, understanding how algorithms work isn't just about code—it's about seeing the logic unfold. This is especially true for graph traversal algorithms like Breadth-First Search (BFS).

BFS is a foundational algorithm used to explore graphs in a level-by-level manner. It starts at a given source node and explores all its neighboring nodes before moving on to their neighbors, continuing this process outward like ripples in a pond. The core idea is to visit nodes in the order of their distance from the source, where “distance” refers to the number of edges traversed.

But while the concept is straightforward, the execution can become abstract—especially when dealing with large or complex graphs. That’s where BFS graph visualization becomes more than a learning aid; it becomes a tool for clarity, analysis, and debugging.

How Breadth-First Search Works in Graphs

At its core, BFS uses a queue to manage which nodes to visit next. Starting from a source node, it follows this process:

1. Visit the source and mark it as visited.
2. Enqueue all its adjacent (unvisited) nodes.
3. Dequeue the next node and repeat the process.

This guarantees that all nodes at distance k from the source are visited before any node at distance k+1, making BFS particularly useful for:

• Finding the shortest path in unweighted graphs
• Checking graph connectivity
• Level-order traversal in tree structures

Without visualization, the way BFS "spreads out" from the source can feel hidden behind a series of queue operations. A visual layer turns that process into something observable—a real-time unfolding of logic.

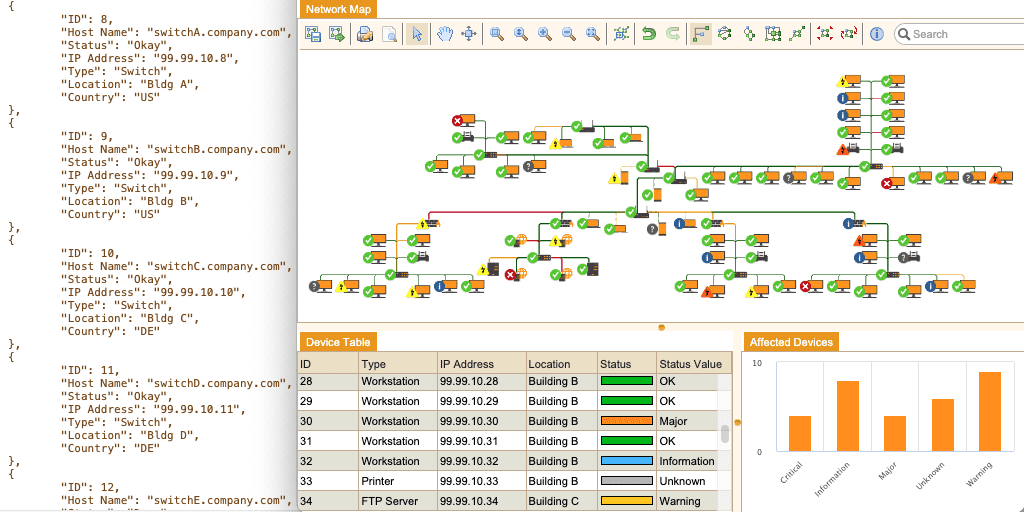

A JSON visualization of a network of computers.

Use Cases for BFS Visualization

Visualizing BFS is not just useful for academic learning—it has practical applications in multiple domains:

• Education & Learning Platforms: Helps students understand queue behavior and node visitation order.
• Debugging Algorithms: Allows developers to see traversal anomalies, unreachable nodes, or performance bottlenecks.
• Network Analysis: Shows how information or influence might propagate in a network (e.g., a social network or computer network).
• Game Development: Used for AI pathfinding, especially in grid-based maps.
• Web Crawlers & Bots: BFS-like logic is often used to explore link structures across websites or document graphs.

In all these scenarios, a graph BFS visualization helps make abstract logic concrete. It reveals patterns, structures, and traversal priorities that are hard to perceive through code alone.

How BFS Graph Visualization Helps Understanding

At first glance, Breadth-First Search might seem simple—just visit nodes layer by layer. But in practice, especially with larger or non-trivial graph structures, it can be surprisingly difficult to track the actual traversal flow. That’s where visualization steps in—not just as a teaching tool but as a means to develop a deeper, more intuitive understanding of how the algorithm behaves.

What makes BFS unique is the way it respects proximity to the starting node. Visualizing this property allows you to see each level of the graph being explored in concentric waves, creating a visual “ripple effect.” Nodes are highlighted in the exact order they are visited, making it clear which nodes belong to the same depth level in the traversal.

This visual layering is especially helpful when comparing different types of graphs. In a tree, BFS naturally results in a level-order traversal, neatly moving from root to leaves. In a directed graph, it becomes easier to detect unreachable nodes or discover how directionality affects traversal coverage. In dense graphs, you can immediately spot how the algorithm fans out and how quickly it saturates reachable nodes.

One of the often-overlooked benefits of BFS visualization is its impact on debugging and performance tuning. When you're working with custom graph structures, dynamically generated graphs, or hybrid traversal algorithms, it’s not always obvious where the process might be skipping nodes or creating bottlenecks. Watching the traversal unfold in real time—seeing the queue shrink and expand, observing when and why a node gets visited—can quickly highlight logic errors or inefficiencies that are otherwise buried in lines of code.

Beyond correctness, visual feedback is crucial for building trust in your implementation. This is especially true when integrating BFS into systems where traversal outcomes drive downstream processes—like search relevance, access permissions, or network routing. A correct result is important, but being able to explain and justify how that result was produced visually, gives you a powerful tool for both internal validation and stakeholder communication.

So while BFS may be conceptually straightforward, understanding its real-world behavior becomes far more accessible—and more insightful—when you see it in motion.

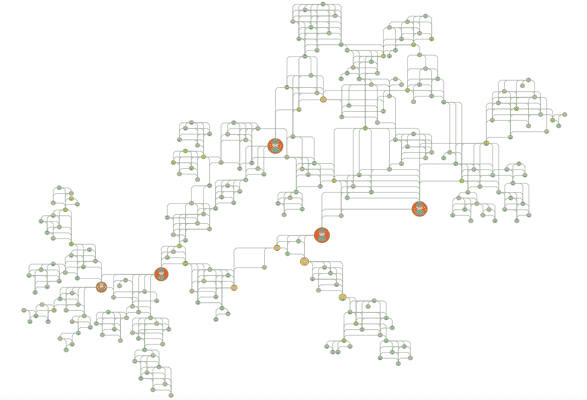

A crime network graph showing connections between different criminals and the middlemen in the network.

Interactive BFS Graph Visualization Examples

When algorithms are made interactive, something shifts—from abstract reasoning to tangible understanding. Interactive BFS graph visualizations take a concept that’s often described in terms of queues and loops and make it visible step by step. Whether used in education, debugging, or demonstration, this kind of visualization bridges the gap between how BFS works and why it behaves the way it does.

One of the most common use cases for BFS visualization is in educational tools. Platforms designed for teaching data structures and algorithms frequently feature built-in graph editors where learners can draw a graph, choose a starting node, and observe how BFS explores the structure. As the algorithm runs, each node is highlighted in the order it’s visited. Queues are shown expanding and contracting in real time. This visual flow makes it easier to understand how distance from the source node affects the order of traversal and how BFS behaves on different graph topologies.

In more advanced use cases, developers integrate BFS visualization into custom tooling or internal systems. For instance, in a network monitoring tool, BFS might be used to explore reachable components in a system. Visualizing that exploration helps identify isolated nodes, unexpected loops, or segments that aren’t properly connected. In web development, BFS logic can be visualized to trace DOM relationships or analyze site structures, especially when building site crawlers or optimizing navigation paths.

Interactive visualizations are also a powerful component of demonstrations and documentation. Instead of explaining BFS behavior through static diagrams, teams can include live visualizations to communicate logic during technical presentations, onboarding sessions, or product walkthroughs—particularly when working with clients who may not be technically inclined. A visual BFS explanation often succeeds where words or raw code fall short.

Perhaps the most practical application is in building in-browser BFS visualizers with JavaScript libraries like D3.js or Vis.js, or with enterprise grade applications like Tom Sawyer Perspectives. This graph technology platform allow developers to construct interactive graphs where each node and edge is a dynamic element. Users can trigger a traversal, watch as the algorithm runs in real-time, and manipulate parameters on the fly—such as switching from BFS to DFS or adjusting graph density.

What makes these tools effective isn't just that they show something happening but that they offer exploration and control. They let users slow down the algorithm, reverse it, or jump to a specific step. This flexibility reinforces comprehension and invites experimentation, which leads to deeper learning and faster debugging.

In all these contexts, interactive BFS visualization turns a fundamental algorithm into a visual experience—revealing not just what the algorithm is doing but how it reasons through structure, order, and logic.

BFS vs DFS: Key Differences in Visualization

At a glance, Breadth-First Search (BFS) and Depth-First Search (DFS) may seem similar—they both explore graphs, they both visit nodes, and they both maintain a list of what’s been seen. But when visualized, their fundamental differences become immediately clear. These differences not only affect how the graph is traversed but also how the algorithm “feels” to the user watching it unfold.

BFS proceeds layer by layer. The visualization reveals a ripple-like pattern: starting from the source, it expands outward, visiting all nodes at one distance level before moving deeper. This makes the graph appear to “bloom” from the center, producing a highly structured, predictable traversal path. It’s ideal for scenarios where order and proximity matter—such as shortest path calculation or finding the nearest resource.

In contrast, DFS digs deep. Instead of covering nearby neighbors first, DFS follows a path as far as it can go before backtracking. Visually, this results in elongated, branching paths—almost like tendrils extending across the graph. The traversal path appears more chaotic or meandering, especially in dense graphs, because DFS commits to depth before considering breadth.

This contrast is especially noticeable when visualizing search coverage. A DFS may visit a node far from the starting point early on, while BFS will only reach that same node after exploring all closer ones. The implication for users is significant: if you're trying to trace influence outward from a central node, BFS tells a clearer story. If you're exploring dependencies or verifying reachability, DFS might be the better lens.

Comparison Table – BFS vs DFS in Graph Visualization

Beyond the summary in the comparison table, one of the most visually distinctive differences between BFS and DFS lies in their backtracking behavior.

In DFS graph visualizations, backtracking is an essential and visible part of the traversal process. The algorithm explores as deep as possible along a path, and when it hits a dead end, it retreats step by step to explore alternate branches. This retreat can be highlighted using animations such as fading paths, color resets, or subtle reverse transitions, helping users understand the recursive nature of DFS.

In contrast, BFS visualizations rarely exhibit visible backtracking. Since BFS proceeds level by level, it maintains a steady outward expansion—almost like ripples in a pond—without needing to revisit previously explored paths. This gives BFS a more structured and predictable flow, which is especially effective in visualizing distance-based progression.

When deciding which traversal algorithm to visualize, ask yourself:
What story do I want to tell with this data?

• If you're emphasizing proximity, shortest paths, or influence spread from a source node, BFS is the better choice.
• If you're exploring decision trees, recursive logic, or dependency chains, DFS will provide a more informative and investigative visual structure.

Understanding these distinctions helps developers, educators, and analysts choose the most appropriate technique for their visual storytelling goals. By offering users the ability to toggle between BFS and DFS visualizations—and by clearly explaining what’s changing under the hood—you enable deeper insight, better algorithm literacy, and a stronger connection between data structure and real-world behavior.

Visualizing Depth First Search in Graphs

While Breadth-First Search offers a level-based traversal pattern, Depth First Search graph visualization focuses on how the algorithm explores one path as deeply as possible before backtracking. This results in a more linear, branch-like visual pattern where long paths dominate the view. DFS is particularly valuable in scenarios where the goal is to find a path, rather than the shortest path—such as in maze solving, tree traversals, or cycle detection.

A DFS graph visualization typically highlights the active recursive path, marks visited nodes, and shows backtracking visually—often with fading or reverse animations. Unlike the concentric layers of BFS, DFS visualizations resemble deep dives with sporadic reversals. This difference makes DFS ideal for exploring search trees, dependency resolution in compilers, and solving logic puzzles like Sudoku or backtracking problems.

For developers or educators, including both BFS and DFS visualizations in a learning tool or demo provides a side-by-side comparison that helps users intuitively grasp algorithmic flow and decision-making strategies.

Tools and Libraries for BFS and DFS Visualization

Creating effective graph traversal visualizations requires more than just a working algorithm—it also demands the right tools for rendering, interaction, and control. Whether you're building a lightweight teaching demo or a high-performance analytics dashboard, the libraries you choose will shape both the development process and the final user experience.

Tom Sawyer Perspectives addresses big data challenges from two important angles—combining powerful graph analytics tools with revolutionary graph visualization. Perspectives is a low-code application development platform that enables developers to build custom graph visualization and analysis applications to meet their unique use cases.

Another choice for limited browser-based visualizations is D3.js. It offers complete control over the rendering pipeline and supports SVG, Canvas, and even WebGL rendering through extensions. For BFS and DFS visualizations, D3 allows you to animate the traversal, highlight node states, and bind data dynamically to the structure of the graph. Because it doesn’t impose predefined components, it’s particularly well-suited for developers who want to design from the ground up, tailoring every interaction and transition to match the logic of the algorithm.

For those who prefer higher-level abstractions, Cytoscape.js is another option. It’s a graph theory library built specifically for network visualization and analysis. Cytoscape includes built-in support for common layouts and interaction modes, and while it doesn't handle algorithm logic itself, it makes visual representation easier and faster to implement. It's often used in academic settings, research dashboards, and lightweight SaaS tools where ease of integration is key.

If the focus is on performance—particularly with large graphs—Vis.js can be a great choice. Designed with real-time interaction and clustering in mind, it excels at handling dynamic updates and maintaining smooth animations even when visualizing hundreds or thousands of nodes. While customization is more limited compared to D3, its API is straightforward, making it accessible for quick prototyping.

In recent years, developers have also started combining tools—using D3 for data binding and layout logic, and rendering with Canvas or WebGL for speed. This hybrid approach is especially useful in environments like game engines, simulations, or complex monitoring tools, where performance is critical and visual output must respond instantly to user input or live data streams.

Beyond JavaScript-based solutions, there are also browser-based platforms like VisuAlgo, GraphVis, or Algolist that allow users to generate BFS and DFS visualizations without writing code. These platforms are valuable for teaching, onboarding, or quick experimentation, but they tend to be limited in flexibility and scalability.

Ultimately, the best tool depends on your goals:

• If you have a simple use case, D3 offers flexibility.
• If you want a balance between power and simplicity, Cytoscape.js or Vis.js may be more efficient.
• If you're working in a team or educational setting, prebuilt platforms or visual IDEs can accelerate development and collaboration.
• For advanced use cases and enterprise applications, Tom Sawyer Perspectives allows you to link to data from multiple data sources and connect it in a unified schema, and create an application with integrated data visualization and analysis that delivers the power you expect from graphs, and the seamless knowledge graph experience your users need.

Choosing the right library is not just about rendering efficiency—it’s about aligning your visualization with user intent, interaction goals, and the structure of your data.

Best Practices for Building Your Own Graph Traversal Visualizations

A well-executed graph traversal visualization does more than just “run an algorithm.” It communicates. It helps users understand what’s happening, why it’s happening, and what to focus on. Achieving that clarity requires intentional design—both in visual styling and in how information is structured over time.

The first and most important principle is clarity over complexity. Even if your algorithm is sophisticated under the hood, the visual interface should be simple and intuitive. Users should never have to guess what each color, shape, or movement means. Every visual signal—be it a highlighted node, a bold edge, or a paused animation—should correspond to a clear and consistent concept: visited, in queue, processed, or discovered.

Color is one of the most powerful tools you have—but it must be used deliberately. When illustrating BFS or DFS, color changes often signal node states. For example, a node might start as neutral (gray), become “discovered” (blue), then shift to “fully visited” (green). However, overusing colors or picking palettes with low contrast can quickly make the map unreadable. It’s also crucial to ensure accessibility: choose color schemes that are distinguishable to users with color vision deficiencies, and avoid relying solely on color to convey meaning. Pair it with shape changes, size variation, or labels when possible.

Interactivity is another key factor, especially for educational or exploratory tools. Letting users step through the traversal—either manually or at controlled speeds—creates space for learning and reflection. Including a timeline or queue preview, showing upcoming nodes or remaining unvisited ones, adds transparency to the algorithm’s behavior. Features like hover-to-highlight or click-to-isolate help users focus on specific parts of the graph without being overwhelmed.

Animations should enhance understanding, not distract. Smooth transitions between states help users follow the progression of the algorithm, but excessive motion or long delays can make the experience frustrating. Keep animations short, purposeful, and consistent. If your visualization includes options to switch between BFS and DFS, maintain the same visual language across both to allow meaningful comparisons.

Scalability matters too. What works for 10 nodes may break down visually at 100. Consider layout strategies that reduce clutter, such as radial layouts for trees, force-directed positioning for general graphs, or collapsing subgraphs into clusters. For large datasets, you might even implement progressive rendering—showing a high-level overview first, then revealing detail on demand.

And finally, think about your audience. Are you designing for students, engineers, analysts, or clients? Each group brings a different level of background knowledge, expectations, and goals. Tailoring your visualization’s tone, interface, and annotations to match their needs will determine whether it’s simply “cool to look at” or truly useful.

In short, the best BFS and DFS visualizations don’t just illustrate traversal—they tell a story through motion, color, and interaction. They make the abstract concrete, the invisible visible, and the complex understandable.

Graph Traversal Visualization: Tips for BFS and DFS

Whether you're building a BFS graph visualization or a DFS graph visualization, a few visualization principles will dramatically improve clarity and user understanding:

1. Make traversal direction obvious
   Use arrows or animated transitions to indicate how the algorithm is progressing through the graph. This is especially helpful in DFS, where backtracking can be confusing without visual cues.
2. Color-code traversal stages
   Show different states like "discovered," "visited," or "backtracked" using distinct colors. For example, in a DFS graph, you can highlight the active path in blue and already visited nodes in gray or green.
3. Label nodes with timestamps or depth levels
   This is particularly useful when comparing graph BFS visualization with DFS. BFS labels often show clear level order (e.g., level 0, 1, 2...), while DFS labels reflect the order of recursion or backtracking.
4. Let users switch between algorithms
   If you're building an interactive tool, include a toggle to switch between BFS and DFS visualizations. This allows users to see firsthand how each algorithm behaves differently on the same graph.
5. Use tooltips or sidebars for queue/stack state
   Show the current state of the queue (for BFS) or stack/recursion (for DFS) in real-time. This reinforces the underlying mechanics of the algorithm and supports deeper learning.

By applying these principles, your visualization will do more than just animate an algorithm — it will help users understand how and why it works.

When to Use DFS Over BFS in Graph Visualization

While Breadth-First Search (BFS) is commonly used for exploring nodes level by level, Depth-First Search (DFS) is better suited for scenarios that require following a path as deep as possible before backtracking. In these cases, a depth first search graph visualization provides a more natural and informative view of the traversal behavior.

You should consider using DFS graph visualization when:

• You need to analyze recursive structures, such as trees, compilers, or nested hierarchies.
• The goal is to find any path to a node, not necessarily the shortest one.
• You're solving problems like maze exploration, cycle detection, or backtracking-based puzzles (e.g., Sudoku, N-Queens).
• You're debugging stack-based algorithms and need to understand the depth of the call chain.

Unlike BFS, which spreads outward in uniform layers, DFS reveals the "depth-first" nature of the search—showing how the algorithm commits to a path until it hits a dead end, then retraces steps. This behavior is especially valuable when visualizing graphs with deep branching structures or when trying to debug traversal order in recursive logic.

In summary, if your primary focus is path discovery, recursion, or depth analysis, Depth-FirstSearch graph visualization offers clearer insight than BFS. When combined with interactive elements like stack previews and backtracking animations, DFS becomes not just a search method—but a powerful storytelling tool for how algorithms navigate complexity.
