What Is Dependency Graph Visualization?
Dependency graph visualization represents dependencies between components in a system as a graphical diagram. It shows which components depend on others, making relationships that may be hard to identify in lists, tables, or documentation easier to understand. A dependency graph uses nodes to represent entities or components and directed edges to show the dependencies between them.
Visualizing these relationships helps teams identify components with many dependencies and examine how changes could affect other parts of the system. The graph also provides a shared reference for discussing system structure, making it easier to communicate relationships that would otherwise require tracing connections across separate documents.
For workflows without cyclic dependencies, topological sorting places prerequisite tasks before the tasks that depend on them. The product development lifecycle below illustrates this ordering.

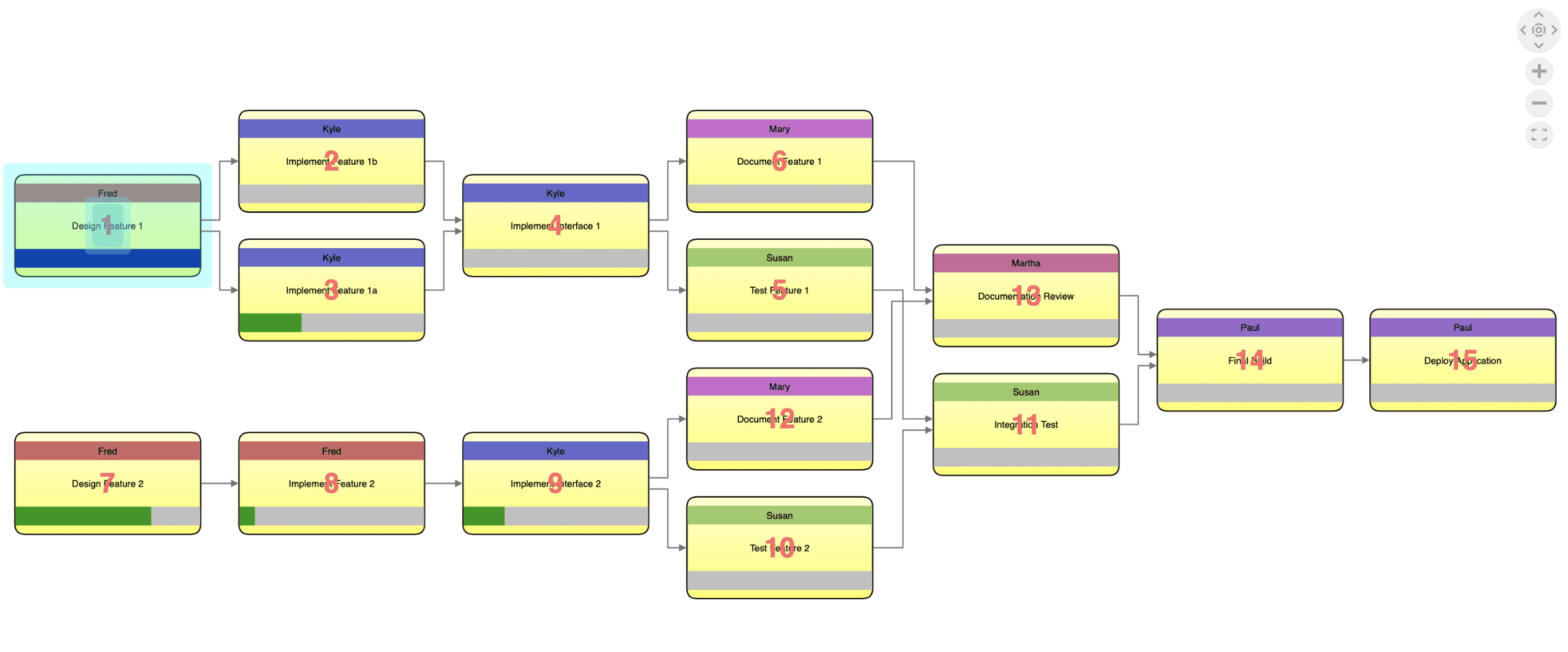

A topologically sorted dependency graph visualization showing the different steps in a product development lifecycle.
Benefits of Dependency Graph Visualization
Dependency graph visualization supports change-impact analysis by showing which components rely on a component selected for modification. Tracing dependency paths helps teams identify indirect dependents and define the scope of review and testing.
The same view supports architectural review. Dependencies that cross intended module boundaries may reveal coupling that complicates maintenance, while cyclic dependencies can make components difficult to build or test independently. Examining these relationships helps developers assess where refactoring would improve separation of responsibilities.
Components with many dependents also warrant attention because a failure or incompatible change could affect several parts of the system. Their structural importance, however, does not mean they are performance bottlenecks. Identifying a bottleneck requires operational evidence, such as processing times, workload, or capacity constraints.
A shared dependency view gives teams a common reference for discussing changes. Technical teams can explain which relationships create implementation risks, while project managers can examine how prerequisite work affects delivery plans. This makes assumptions about change scope and task sequencing easier to review across disciplines.
Tools for Dependency Graph Visualization
Dependency graph tools differ in how they obtain dependency information and what users can do with it. Some extract relationships from source code or package metadata. Others work with dependency data supplied by the user or an application. The choice depends on whether the task is to examine an existing codebase, analyze a graph dataset, or develop an application for exploring system dependencies.
Graph Drawing and Analysis Tools
Graphviz renders dependency diagrams from DOT descriptions, while Gephi supports exploration and analysis of imported graph datasets through filtering and clustering. D3.js provides JavaScript modules for building custom interactive web visualizations. Python workflows can use NetworkX for graph analysis and PyGraphviz for Graphviz-based layout and rendering.
Code and Package Dependency Tools
CppDepend and JArchitect analyze dependencies in C++ and Java codebases, respectively. Their dependency graphs help developers examine code structure and investigate coupling between components. Browser-based tools such as npmgraph display package-level relationships in the npm ecosystem.
Webpack Bundle Analyzer displays bundle contents and module sizes as an interactive treemap. Developers can use this view to identify large modules and assess opportunities for code splitting. Its focus is bundle-size investigation rather than tracing dependency paths in a node-link graph.
Tom Sawyer Perspectives
Tom Sawyer Perspectives is Tom Sawyer Software’s low-code development platform and SDK for building custom graph and data visualization applications with integrated analysis capabilities. Developers can connect dependency information from existing data sources and create interactive views tailored to the system being investigated.
In a dependency graph application, users may need to move from a system overview to the dependencies within a particular subsystem. Tom Sawyer Perspectives supports this through nested drawings, which represent related components inside a parent node that users can expand or navigate into. Hierarchical layout arranges components to make dependency direction easier to follow. As users expand the graph to investigate additional components, incremental layout minimizes unnecessary movement of existing elements, helping them retain their orientation in the drawing.
Tom Sawyer Perspectives provides dynamic layouts and enables developers to build real-time visualization applications. These capabilities support enterprise applications in industries such as telecommunications and aerospace, where users need to examine dependencies across interconnected systems. Applications can also display component attributes alongside the relationships. The example below shows task dependencies together with duration and status information, helping users examine how the process is progressing.

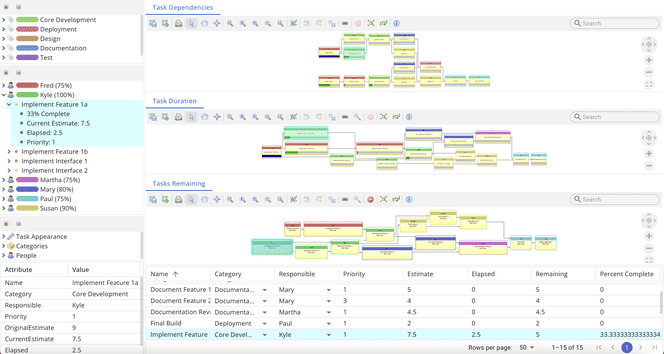

A dependency graph visualization application built with Tom Sawyer Perspectives showing the dependencies, duration, and status of different tasks in a process.
Step-by-Step Guide: How to Create a Dependency Graph
To create a dependency graph, establish which components belong in the model and what each dependency represents. A graph used to investigate software changes will require different source information and detail from one used to schedule project tasks.
Step 1: Identify Dependencies
Gather information about the components within the system boundary and the relationships relevant to your question. In software development, this may involve examining source code, package manifests, or build configurations. For project management, review task schedules and resource allocations, distinguishing prerequisite relationships from constraints caused by shared resources.
Automated analysis can help collect dependency information, but its coverage depends on the source. Build records may describe declared package dependencies, while runtime observations reveal interactions during execution. Check that the collected relationships represent the type of dependency you intend to investigate.
Step 2: Choose the Right Tool
Choose a tool that supports your dependency data and the work users need to perform. A generated diagram may be sufficient for reviewing a small, stable system. An application used to investigate changing dependencies may require interactive navigation and connections to existing data sources.
Step 3: Define the Structure of the Graph
Assign each component a stable identifier and represent each dependency as a directed edge between the relevant nodes. Define the edge direction explicitly. For example, if A → B means that B depends on A, use that convention throughout the graph and explain it in the legend.
Retain attributes needed for interpretation, such as component type or task status. Check for duplicate components, missing endpoints, and inconsistent identifiers before generating the drawing.
Step 4: Generate the Graph
Apply a layout that makes the dependency structure readable. Hierarchical layout can help users follow directed relationships, while nested drawings can organize components within subsystems.
Use labels and visual styles to communicate relevant attributes consistently. Validate a sample of the displayed relationships against the source information; a readable drawing can still misrepresent the system if its underlying data is incomplete.
Step 5: Analyze and Interpret the Graph
Trace dependency paths to identify components that could be affected by a proposed change. Examine both immediate dependents and those connected through intermediate components. These paths indicate where further investigation or testing may be needed; they do not establish that every connected component will be affected.
Check detected cycles against the source information to confirm that the relationships are recorded correctly, then assess whether those dependencies are intended. For components with many dependents, identify which parts of the system would need review after a change or failure.

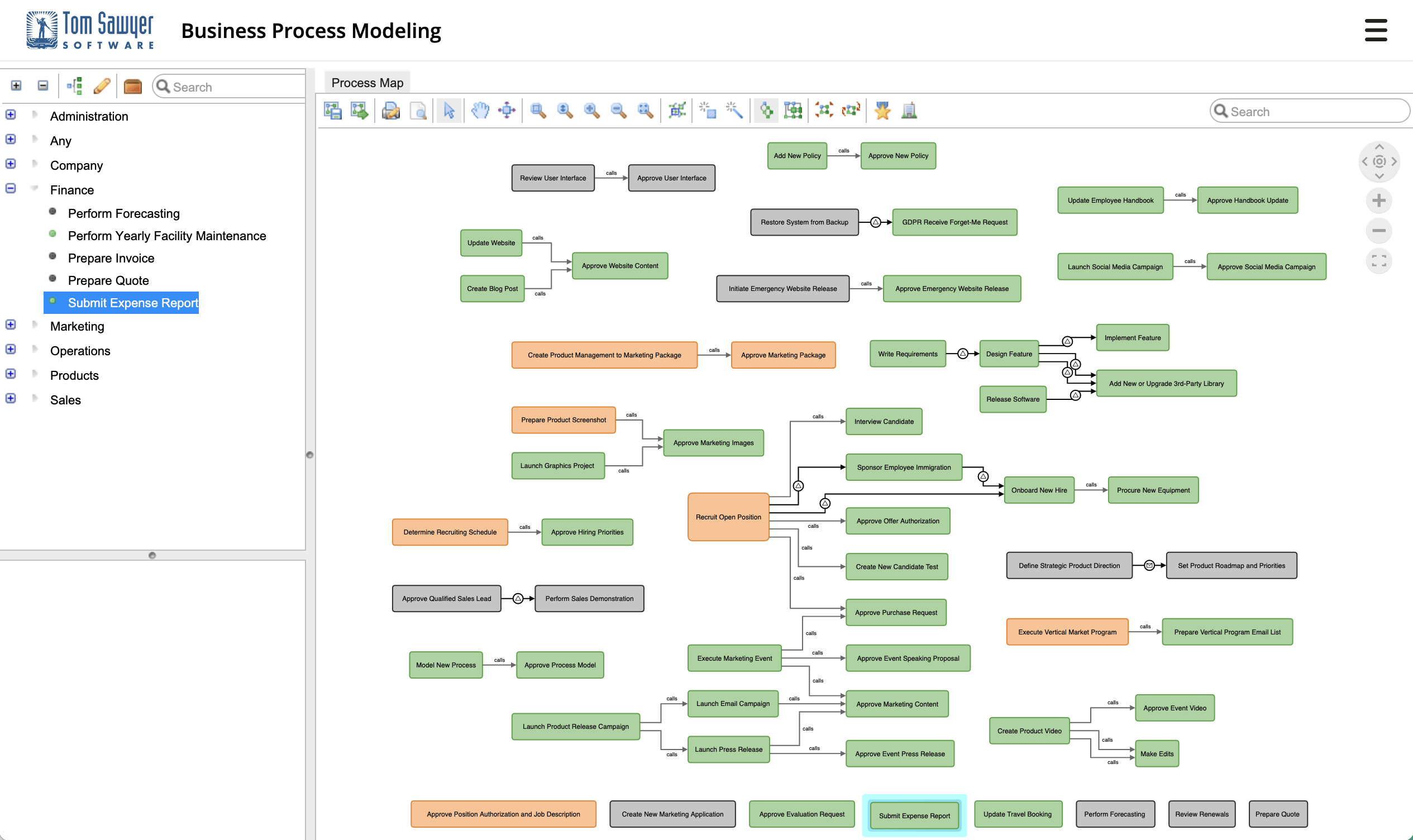

A map of processes, their status and relationship to one another.
Example: Tracing the Impact of a Library Change
Consider a simplified system in which an authentication service uses a shared library. A checkout application and an administration interface both depend on that service. Using arrows from a prerequisite to its dependent, the graph connects the library to the authentication service, then connects the service to both dependent components.
Before updating the library, developers inspect how the authentication service uses the functionality being changed. They then follow the outgoing dependency paths to identify application behavior that may need regression testing. If the change affects authentication responses, both dependent components warrant review. The graph shows the dependency paths; examining the changed functionality determines which tests are relevant.
An application built with Tom Sawyer Perspectives can present these relationships as an interactive dependency graph, allowing developers to trace paths from the shared library to its direct and indirect dependents.
Best Practices for Dependency Graph Visualization
A dependency graph should make relationships easier to investigate without changing their meaning. The level of detail shown needs to help users answer a specific question while preserving enough context to interpret the result.
Focus on Simplicity
A subsystem can initially appear as a single node, with its internal dependencies available through expansion or drill-down. This reduces visual clutter while allowing users to investigate the underlying structure when needed.
Simplifying the view requires care. An apparently redundant edge may record a direct dependency that matters during change-impact analysis. When components or relationships are hidden, users should be able to recognize the limits of the displayed view.
Use Consistent Visual Elements
Users should be able to follow the same visual conventions throughout the graph, including within expanded subsystems. An arrow must retain its defined meaning wherever it appears. If color indicates component status, that meaning should remain consistent across views and be explained in a legend. A failed component should also have a recognizable label or symbol so that its status does not depend on color perception alone.
Highlight Key Dependencies
Highlighting should help users understand why a component or relationship warrants attention. A shared service selected for change-impact analysis has a different significance from a service reporting a failure. Giving both the same visual treatment can obscure that distinction.
Annotations can explain the reason for the emphasis. A highlighted critical path, for example, should reflect schedule analysis using task durations and precedence constraints.
Regularly Update Your Graphs
The graph needs to represent an identifiable state of the source system. For software projects, dependency extraction and graph generation can be incorporated into the CI/CD pipeline, with the resulting graph associated with the build it describes. Other applications may need a collection timestamp to establish how current the information is. Updates must account for relationships that have changed or disappeared; adding newly discovered dependencies alone will gradually distort the model.
Use Interactive Visualizations
Investigating a component often requires moving between its immediate dependencies and the wider system. Applications built with Tom Sawyer Perspectives can use filtering to focus the view, while zooming and panning help users examine the surrounding structure.
Nested drawings and incremental layout help preserve context as users move into subsystem detail or expand the investigation to additional components.
Tailor the Graph to Your Audience
A software engineer investigating a shared module needs implementation detail that may be unnecessary in a project review. A project manager may instead need to understand which unfinished prerequisite is preventing later work from starting. These views can present different levels of detail while retaining consistent component identities and relationship meanings, so that findings remain understandable across teams.
Identify and Assess Cyclic Dependencies
A cycle deserves investigation when it conflicts with the intended dependency structure. In software architecture, it may reveal coupling that complicates independent development or testing. Reciprocal relationships can be valid in other systems, so detecting a cycle does not by itself establish a design defect.
An unwanted cycle must be addressed in the underlying system or corrected in the dependency model if it results from inaccurate data. Hiding an edge changes the drawing without resolving the dependency.
Document and Share Your Findings
Someone reviewing a graph needs to understand what it represents and where its dependency information came from. The accompanying documentation should explain the edge convention and disclose any coverage limitations. If a finding comes from a filtered view, record that scope alongside the relevant dependency path. This allows others to examine the evidence and distinguish confirmed relationships from conclusions that still require investigation.
Challenges in Dependency Graph Visualization
The reliability of a dependency graph depends on how closely its model represents the system being investigated. A missing relationship can change the apparent scope of a proposed modification, while an overloaded drawing can make a relevant dependency difficult to trace. Each problem requires a different response: improving the presentation cannot compensate for gaps in the underlying data.
Managing Complexity in Large Systems
Readability depends on how nodes and edges are connected and arranged. Within a densely connected subsystem, overlapping edges can obscure individual dependency paths even when relatively few components are displayed. As paths cross subsystem boundaries, users also need to follow relationships beyond the area currently under investigation.
Grouping components reduces the detail shown, but the resulting view must preserve access to those external connections. A subsystem view that omits them can understate the potential reach of a change.
Tom Sawyer Perspectives supports nested drawings that let users examine components within a subsystem from a broader system view. This allows detailed investigation without presenting every component simultaneously. Dependencies crossing the subsystem boundary still need to remain traceable as users move between levels.

A business process dependency graph visualization produced with Tom Sawyer Perspectives showing a nested sub-process.
Detecting and Resolving Cyclic Dependencies
A directed dependency path forms a cycle when it returns to its starting component. The relationships involved may span several subsystems, making the cycle hard to spot by inspecting the drawing alone. Graph analysis can detect cycles across these boundaries and guide closer examination of the relevant dependencies.
Tom Sawyer Perspectives includes Acyclic Test and Cycle Breaking Edge Detection for examining cyclic graph structures. Their results require interpretation against the meaning of the relationships. In a task graph, circular prerequisite relationships prevent the tasks from being ordered as modeled. A software dependency cycle may instead expose coupling that complicates independent testing. The appropriate correction depends on the underlying system; removing a relationship from the dependency model should reflect either a correction to inaccurate data or a change in the system itself.
Ensuring Data Accuracy
Dependency extraction has a defined scope. A graph generated from build configurations may accurately represent declared package dependencies while omitting relationships established through runtime configuration. Users need to understand that coverage before treating the absence of a path as evidence that two components are independent.
Component identity also affects the analysis. If separate sources assign different identifiers to the same component, the combined graph may split its dependencies across several nodes. Reusing an identifier for distinct components creates the opposite error, connecting relationships that do not belong together. Automated collection therefore needs validation of how source records map to graph entities. Relationships retained after they have disappeared from the source system can likewise produce misleading paths.
Tool Limitations
A tool’s ability to draw a dependency graph does not establish how it obtains the relationships. Visualization libraries generally work with supplied graph data, leaving dependency extraction to another part of the application. Code analyzers can discover relationships within their supported languages, but their output may still need integration into views suitable for a broader system investigation.
Performance problems also require diagnosis beyond the drawing. A slow source query can delay the appearance of even a small graph. Once the data is available, layout computation may account for much of the remaining wait, particularly when the structure is densely connected. Measuring the stages separately helps establish whether the application needs changes to data access or to the visualization workflow.
Implementation effort also affects tool selection. A team generating diagrams from an existing dependency model faces a different development task from one building a custom application connected to changing source systems. The evaluation should account for the expertise needed to maintain that workflow as the system evolves.
Visualizing Dynamic Dependencies
Data freshness depends on the elapsed time between a change in the source system and its appearance in the graph. Frequent screen refreshes provide little assurance if dependency collection is delayed. During incident investigation, users need to know which observation period the displayed relationships represent. A software release review, by contrast, requires a graph tied to a reproducible version.
Tom Sawyer Perspectives provides dynamic layouts and enables developers to build applications that display dependency information and component states as they change. Filtering helps investigators focus on relevant relationships, with zooming and panning to examine the surrounding structure.
Maintaining an accurate current view requires application update logic that reflects changes in the source system. A removed dependency must disappear from the model, and a modified relationship must replace its previous representation. Otherwise, successive updates accumulate connections from different system states into a graph that no longer accurately describes any one of them.
Real-Life Applications of Dependency Graphs
The meaning assigned to an edge determines which conclusions a dependency graph can support. In practical applications, the relationships must provide evidence for the question being investigated, whether that concerns the reach of a software change or the work affected by an interrupted process.
Software Development
Dependency graph analysis can expose relationships that cross intended architectural boundaries. A connection between otherwise separate modules may explain why a local change requires coordinated updates elsewhere. Reviewing that relationship against the implementation helps determine whether the coupling is necessary or could be reduced through refactoring.
Data Analysis and ETL Pipelines
A failed transformation in an ETL (extract, transform, load) pipeline may prevent downstream processing from completing. An execution dependency graph helps identify the tasks whose prerequisites have not been satisfied and trace the interruption through the workflow.
Investigating an incorrect report value requires a different relationship model. Data lineage connects the output to the source data and transformations that produced it. Following that path can help locate where the value was altered incorrectly. An application may present execution dependencies alongside lineage, but the relationship types need to remain explicit: a task waiting for another task to finish does not describe the same dependency as a report field derived from a source column.
Project Management
When a supplier’s delivery is delayed, the immediate scheduling question is which work requires the missing component. A project dependency graph can connect that delivery to the installation activity it enables and show how the interruption could extend through subsequent work. Task durations provide the basis for examining the effect on the critical path. The resulting schedule must also account for resource availability, since satisfying a prerequisite does not establish that the required team or equipment will be available to begin the next activity.
Microservices Architecture
During an incident, failures reported by several services may lead investigators toward a shared downstream dependency. A service graph assembled from distributed tracing data provides a way to follow the observed calls and examine where requests encountered errors or accumulated latency.
The observation period matters. The graph represents interactions captured during that interval, so a relationship absent from the view may simply have gone unobserved. Investigators need to interpret the topology alongside the underlying traces and operational measurements before attributing the failures to a particular service.
Cloud Infrastructure
Replacing a cloud database requires an understanding of which application workloads rely on it. A graph of runtime dependencies can help identify the services that need review before the change and establish where operational checks should be concentrated afterward.
Infrastructure provisioning uses dependency relationships for a separate purpose: ordering resource operations. A resource that must exist before another can be provisioned is not necessarily a complete representation of how the deployed application uses those resources. Keeping provisioning relationships distinguishable from runtime dependencies helps prevent deployment order from being mistaken for a model of operational impact.
Education and Training
Comparing a dependency graph before and after refactoring gives students a concrete basis for evaluating an architectural decision. An exercise might begin with components that cannot be tested independently because their dependencies form a cycle. Students can examine the relevant code, propose a change, and use the revised graph to explain how the dependency structure has changed. The comparison connects the implementation to its architectural consequences rather than treating a cleaner drawing as sufficient evidence of improvement.
Business Process Optimization
In manufacturing, a component delivery may be a prerequisite for assembly. When that delivery is late, a dependency graph helps teams follow the affected work through the production process. Process status provides the context needed to distinguish an unresolved prerequisite from work that has already been completed.
Nested subprocesses allow a production stage to be examined in greater detail while retaining its position in the wider workflow. This is useful when an apparent delay at one stage needs to be traced to an internal activity or an input supplied by another part of the process. The investigation can then focus on the relationship preventing work from proceeding.
Final Thoughts
Dependency graph visualization helps teams assess how a proposed change or an interruption could affect the work that depends on a component. The assessment requires a graph that represents the relevant system state and keeps dependency paths traceable across subsystem boundaries. Those paths provide a basis for investigation, with the underlying system evidence guiding the decision.
Tom Sawyer Perspectives provides a low-code development platform and SDK for building custom dependency graph visualization and analysis applications. Developers can connect existing dependency data and configure interactive views around the questions users need to answer, preserving access to subsystem detail within the broader system model.
About the Author
Caroline Scharf, VP of Operations at Tom Sawyer Software, has 15 years of experience with Tom Sawyer Software in the graph visualization and analysis space, and more than 25 years of leadership experience at large and small software companies. She has a passion for process and policy in streamlining operations, a solution-oriented approach to problem solving, and is a strong advocate of continuous evaluation and improvement.
FAQs About Dependency Graph Visualization
How Can You Create a Dependency Graph With Minimal Technical Knowledge?
A visual diagram editor allows users to create a small dependency graph without programming. Each component becomes a node, with directed connections showing how it depends on other components. Start with a process or subsystem whose relationships can be checked with someone familiar with its operation. Define what the arrows mean before drawing connections so that the diagram uses one consistent dependency convention.
How Can Teams Collaborate on Dependency Graphs?
Teams can maintain a shared dependency model and review proposed changes with the people responsible for the affected components. Consistent component identifiers allow contributors to connect their findings to the same entities, even when they work on different parts of the system. For generated graphs, retaining the source-data version and generation configuration makes a result reproducible. Annotations can record unresolved assumptions without presenting them as confirmed dependencies.
How Do You Handle Sensitive Data in Dependency Graphs?
Access should reflect the information a dependency graph exposes. Even without confidential business records, its relationships may reveal internal architecture or operational dependencies. Shared views should contain only the detail needed for their intended use. Before distributing an exported image or report, review the information visible in that artifact, since access restrictions in the original application no longer control who can see the exported content.
How Do You Interpret a Dependency Graph for Decision-Making?
Interpret dependency paths according to the relationship type and edge direction defined in the model. A path from a shared component to its dependents identifies where a proposed change may require investigation; it does not establish the severity of the consequences. That judgment requires evidence from the underlying system. The graph must also represent a system state relevant to the decision, such as the software version being considered for release.
What Is the Difference Between a Dependency Graph and a Dependency Tree?
A dependency tree organizes relationships into a rooted hierarchy without cycles, with one parent for every node except the root. A general dependency graph can represent several components depending on the same node and may contain cycles. Both representations can show transitive dependencies. When a graph is presented as a tree view, a shared component may appear under multiple branches, with each occurrence referring to the same underlying component.
Can Dependency Graphs Be Generated Automatically?
Yes. Tools can extract dependency relationships from machine-readable sources, such as source code or build configurations, and use the results to generate a graph. The extraction method determines which relationships are captured. A build-based graph may describe declared dependencies accurately while omitting connections established through runtime configuration. Those relationships may require a separate collection method before they can be incorporated into the model.
