Node Graph Visualization

Exploring Graph Node Visualization Techniques in JavaFX and Python

What is Graph Node Visualization?

Graph node visualization represents entities (nodes) and their relationships (edges) in a graphical format, making complex data structures more intuitive and accessible. This visualization approach is widely used in data analysis, computer science, biology, and social sciences to simplify and explore interconnected systems.

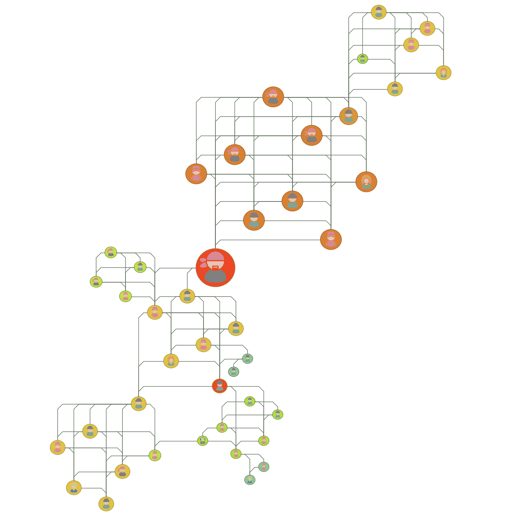

A graph visualization showing the relationships between nodes.

Common Applications of Graph Node Visualization

Graphs are incredibly versatile and are used across various domains:

• Social Networks: Nodes represent users, and edges signify connections, helping analyze influence, connectivity, or community structures.
• Network Analysis: Visualizing IT infrastructure or transportation networks to identify bottlenecks or optimize performance.
• Project Management: Mapping dependencies between tasks or teams, often in hierarchical formats.
• Biology and Medicine: Studying gene interactions or visualizing neural networks in the brain.
• Business Intelligence: Representing customer relationships, supply chains, or organizational workflows.

Benefits of Graph Node Visualization

1. Clarity: Graphs simplify complex relationships by turning abstract data into visual representations.
2. Pattern Recognition: They help identify clusters, hubs, or anomalies in the data.
3. Enhanced Decision-Making: Graph graphs empower organizations to make data-driven decisions by providing actionable insights.
4. Scalability: Graphs can represent small, tightly-knit datasets and sprawling networks with millions of connections.

A graph visualization showing the relationships between criminals in a criminal network, allowing for greater clarity about key players in the network.

The Importance of Interactivity in Visualization

Static graphs provide a snapshot of data, but interactivity adds another dimension, allowing users to explore networks dynamically. Features like zooming, panning, and highlighting specific nodes or edges make it easier to analyze complex datasets. Tools like JavaFX and Python excel in creating interactive visualizations that bring graphs to life.

Why Choose JavaFX for Node Graph Visualization?

JavaFX is a modern framework for building visually rich and interactive desktop applications in Java. Regarding graph node visualization, JavaFX offers a robust and scalable platform, making it a preferred choice for developers looking to create high-performance, dynamic visualizations.

High Performance

JavaFX uses hardware acceleration to render visuals, ensuring smooth performance even when working with large and complex datasets. This is especially critical for node graph visualizations that involve thousands of nodes and edges, where rendering speed and responsiveness are essential.

Rich Graphical Capabilities

JavaFX provides an extensive suite of tools for creating visually compelling graphs. From customizable shapes and colors to advanced animations and transitions, developers can fine-tune every visualization aspect.

Applications of JavaFX Node Graph Visualization

JavaFX Node Graph Visualization is well-suited for desktop applications requiring robust and interactive visualizations. Some real-world applications include:

• Network Monitoring: Visualizing IT infrastructure, including servers, routers, and connections, to detect and resolve issues.
• Organizational Tools: Representing team structures, workflows, or project dependencies for better management and collaboration.
• Educational Software: Creating interactive tools for teaching concepts like graph theory, data structures, or algorithms.
• Scientific Research: Visualizing complex systems, such as ecological networks or molecular structures, using the versatility of JavaFX Node Graph Visualization.
• Simulation Systems: Building graph-based simulations for traffic flows, epidemic modeling, or supply chain analysis.

Limitations of JavaFX

While JavaFX is a powerful tool, it does have some limitations:

• Learning Curve: Developers new to Java or JavaFX Node Graph Visualization may struggle to grasp its APIs initially.
• Desktop-Centric: JavaFX is optimized for desktop applications, which may not align with projects requiring web-based deployment.
• Resource-Intensive: High levels of customization and interactivity can demand significant development effort.

Why Choose Python for Node Graph Visualization?

Due to its simplicity and extensive library ecosystem, Python has become a go-to language for data analysis, machine learning, and visualization. Regarding node graph visualization, Python offers tools that cater to beginners and advanced users, making it a versatile choice for creating static and interactive visualizations.

Simplicity and Accessibility

Python's clear and intuitive syntax allows developers to quickly implement visualization solutions. Those with minimal programming experience can leverage Python libraries to create compelling graphs.

Rich Ecosystem of Libraries

Python boasts many libraries designed specifically for graph visualization and manipulation. Each library serves different needs:

• NetworkX: For creating, analyzing, and visualizing complex networks.
• Matplotlib: Ideal for producing static, publication-quality visuals.
• PyVis: A browser-based tool for creating dynamic, interactive graphs.
• Graph-tool: A high-performance library for handling large graphs.

Applications of Python Node Graph Visualization

Python's flexibility and ecosystem make it suitable for a wide range of applications, especially when leveraging Python Node Graph Visualization:

• Social Media Analysis: Visualizing interactions and influence within networks like Twitter or LinkedIn.
• Business Intelligence: Mapping customer relationships, supply chains, or employee structures to identify inefficiencies or opportunities using Python Node Graph Visualization tools.
• Research and Academia: Exploring biological systems, citation networks, or other scientific data.
• Urban Planning: Modeling transportation systems or city infrastructures to improve efficiency.
• Cybersecurity: Analyzing attack vectors, network vulnerabilities, or threat detection paths.

Limitations of Python

While Python excels in many areas, it does have its drawbacks:

• Performance Bottlenecks: Some libraries, like Matplotlib, may struggle with very large datasets, making them less suitable for real-time visualizations in Python Node Graph Visualization.
• Less Granular Control: Unlike JavaFX, which allows fine-tuned customization, Python libraries often work within predefined frameworks, limiting flexibility.
• Web-Dependent Interactivity: Tools like PyVis require a browser environment for interactive visualizations, which may not align with certain desktop-focused use cases.

Key Techniques in Node Graph Visualization

Creating effective node graph visualizations requires a deep understanding of the data and the techniques available to represent it. The choice of layout, level of interactivity, and optimization strategies can significantly impact how a graph is perceived and utilized. This section explores the foundational techniques used in both JavaFX and Python for graph node visualization.

Graph Layouts

The layout of a graph determines how nodes and edges are positioned within the visualization. A good layout enhances readability and highlights key relationships, while a poorly chosen layout can make the graph confusing and difficult to interpret.

1. Force-Directed Layouts

   This is one of the most popular layouts for node graphs. It mimics physical forces, treating edges as springs and nodes as repelling particles. The result is an organic, balanced graph with evenly spaced nodes.
   • Advantages: Intuitive and visually appealing, ideal for networks without strict hierarchies.
   • Use Cases: Social networks, transportation maps, or generic data exploration.

2. Hierarchical Layouts

   This layout organizes nodes into levels based on their relationships, often forming a tree-like structure. Parent nodes are placed above or to the left of their child nodes.
   • Advantages: Highlights dependencies or organizational hierarchies.
   • Use Cases: Dependency graphs, organizational charts, and flow diagrams.

3. Circular Layouts

   Nodes are arranged in a circle, with edges connecting them across the circle or within it. This layout shows relationships in datasets with equal importance among nodes.
   • Advantages: Visually symmetric, easy-to-interpret cyclic connections.
   • Use Cases: Communication networks, cyclic dependencies, or clustering.

4. Grid Layouts

   Nodes are positioned in a grid, which can make dense graphs more manageable. While not as dynamic as other layouts, grid layouts are excellent for comparative analysis.
   • Advantages: Orderly and compact, suitable for structured data.
   • Use Cases: Visualizing tabular data or datasets with uniform node relationships.

Interactivity in Node Graph Visualization

Interactive visualizations allow users to explore and analyze data dynamically. Adding interactive features transforms a static graph into a powerful tool for discovery and insight.

1. Zooming and Panning

   • Essential for navigating large graphs. Users can zoom in to focus on specific nodes and pan to explore different graph sections.
   • Both JavaFX and Python libraries support these features, with smooth transitions ensuring a seamless user experience.

2. Node and Edge Highlighting

   • Highlighting allows users to identify connections or isolate specific nodes by hovering or clicking on elements.
   • For example, hovering over a node in a social network graph could display all its connections, helping users explore relationships more effectively.

3. Dynamic Data Exploration

   • Features like filtering and searching make finding specific nodes or edges easier within a large dataset.
   • Advanced implementations may include sliders or dropdown menus for adjusting thresholds or toggling graph elements.

4. Real-Time Updates

   • Real-time visualizations, such as network monitoring tools, update the graph dynamically as new data arrives.
   • JavaFX excels in this area due to its performance capabilities, while Python libraries like Dash or Plotly can handle real-time updates in web-based environments.

Optimizing Performance for Large Graphs

As node graphs grow in size, performance can become a bottleneck, particularly in interactive or real-time visualizations. Here are techniques to optimize performance:

• Simplify graphs by clustering similar nodes or removing less significant edges. For instance, a network graph can group closely connected nodes into clusters to reduce visual clutter.

• Tools like GraphStream (JavaFX) or NetworkX (Python) support clustering algorithms.

• Render only the visible portion of the graph at any given time. This is especially useful for massive datasets, as it reduces the computational load during user interactions.

• JavaFX leverages hardware-accelerated rendering to maintain smooth performance. Similarly, Python libraries like PyVis use web technologies to offload rendering tasks to the browser.

• Precompute layouts or expensive calculations and cache results for reuse. This reduces processing time during graph interactions, particularly for static visualizations.

Color and Styling

The visual design of a graph plays a crucial role in its usability. Well-chosen colors, shapes, and labels can make a graph more engaging and informative.

1. Color Coding

• Use colors to represent categories, intensities, or clusters. For example, nodes from different communities might be assigned distinct colors to highlight group memberships in a social network.

2. Edge Styling

• Adjust line thickness, opacity, or style (solid, dashed, etc.) to represent relationship strength or type. For instance, a dashed line could indicate a weaker or less certain connection.

3. Node Shapes and Sizes

• Customize node shapes or sizes to convey additional information. Larger nodes might represent more significant entities, while unique shapes can differentiate node types.

4. Readable Labels

• Ensure that node and edge labels are clear and non-overlapping. Interactive features, such as displaying detailed labels on hover, can reduce visual clutter.

Comparing JavaFX and Python for Node Graph Visualization

When deciding between JavaFX and Python for graph node visualization, it’s essential to consider the specific requirements of your project. Both tools excel in different areas, making them suitable for distinct use cases. This section compares their performance, ease of use, customization capabilities, and application scenarios to help you choose the right solution.

Performance Comparison

JavaFX and Python excel in different capacities based on their strengths and limitations. JavaFX leverages hardware-accelerated rendering to efficiently handle large, complex graphs with thousands of nodes and edges. This suits it particularly for applications requiring real-time updates or smooth interactions, such as desktop-based monitoring systems. However, JavaFX's robust capabilities may demand more resources on lower-end hardware, especially for projects involving intricate animations or extremely dense graphs.

On the other hand, Python offers strong performance for moderate-sized graphs through libraries like NetworkX and PyVis. NetworkX is optimized for computational graph analysis, while PyVis uses web-based rendering to shift visualization tasks to the browser, enhancing responsiveness. Despite these strengths, Python's performance may falter with very large datasets, particularly in interactive scenarios or when using static visualization tools like Matplotlib.

Ease of Development

In terms of development, JavaFX and Python cater to different skill levels and project requirements. JavaFX provides a comprehensive API for creating highly customized graphs, animations, and interactions. However, developers new to the Java ecosystem or JavaFX may find the framework challenging to master, as it requires familiarity with its APIs. Additionally, projects that demand extensive customization or integration with external data sources may involve significant development time.

Python, by contrast, is renowned for its simplicity and accessibility. Its intuitive libraries allow developers to implement graph visualizations quickly, making it a popular choice for beginners. Basic visualizations can often be created within minutes, while advanced users can explore features like clustering or graph algorithms with minimal effort. Nonetheless, Python libraries may lack the granular control JavaFX offers, which can limit customization options for highly specific visualization needs.

Customization and Flexibility

Regarding customization and flexibility, JavaFX offers unparalleled control over graph elements. Developers can customize every detail, from node shapes and colors to complex animations. JavaFX’s event-handling capabilities also make implementing features like drag-and-drop functionality or contextual menus easy. However, this high degree of customization comes at a cost—JavaFX has a steeper learning curve and longer development times, especially for intricate projects.

Python libraries simplify development by providing predefined layouts, styles, and interactions. This approach enables developers to achieve quick results without designing visualizations from scratch. However, the trade-off is reduced flexibility for unique customization needs. Advanced modifications often require combining multiple libraries, adding complexity to the development workflow.

Best Practices for Node Graph Visualization

Creating effective and meaningful node graph visualizations requires more than just technical implementation. To ensure clarity, usability, and impact, developers and designers should follow a set of best practices. These guidelines focus on optimizing your visualizations' layout, interactivity, and overall user experience.

1. Prioritize Simplicity and Clarity

A well-designed graph should communicate key information quickly and effectively. Overly complex visualizations with excessive nodes or edges can overwhelm users and obscure important insights. To achieve clarity:

• Focus on Relevance: Include only the most critical nodes and edges. Simplify the visualization by using filters or clustering.
• Minimize Overlap: Avoid overlapping nodes and edges by using intelligent layouts, such as force-directed or hierarchical arrangements.
• Optimize Labels: Ensure node and edge labels are legible and non-intrusive. Consider interactive tooltips to display detailed information when needed.

Example Use Case:
In a graph representing a social network, focus on highlighting key influencers and their immediate relationships rather than displaying all connections.

2. Use Intuitive Graph Layouts

The choice of layout directly impacts the readability and effectiveness of a graph. The layout should reflect the underlying structure of the data and make it easy for users to identify patterns or relationships.

• Force-Directed Layouts: Best for organic, exploratory graphs without predefined hierarchies. Nodes naturally spread apart, creating a balanced visual representation.
• Hierarchical Layouts: Ideal for tree-like structures, such as organizational charts or dependency graphs, where parent-child relationships are crucial.
• Circular Layouts: Useful for highlighting cyclic relationships or clusters in a graph.

3. Enhance Readability with Effective Styling

The visual design of a graph plays a crucial role in its usability. Thoughtful styling ensures that users can easily distinguish nodes, edges, and other elements.

• Color Coding: Assign colors to nodes or edges to represent categories, groups, or intensities. For instance, use distinct colors for different communities in a network.
• Node Size: Adjust node size based on importance or value, such as a centrality score in a social network.
• Edge Styling: Use line thickness, opacity, or patterns (solid/dashed) to convey the strength or type of a relationship.

4. Incorporate Interactive Features

Interactivity transforms static graphs into dynamic tools for exploration. By enabling users to interact with the visualization, you allow them to uncover insights tailored to their needs.

• Hover Effects: Highlight nodes or edges on hover to draw attention to specific elements.
• Click-to-Focus: Allow users to click on nodes to reveal detailed information or isolate subgraphs.
• Zoom and Pan: Essential for large graphs, these features let users navigate the visualization effortlessly.
• Filters and Toggles: Enable users to filter nodes or edges based on attributes, such as type or value, to refine their view.

 5. Optimize Performance for Large Graphs

Performance optimization is critical when working with large datasets, especially in real-time or interactive visualizations. Techniques to improve performance include:

• Lazy Loading: Load and render only visible parts of the graph, reducing initial load times.
• Edge Bundling: Combine similar edges into a single path to reduce visual noise and computational complexity.
• Clustering: Group similar nodes into clusters, displaying them as a single entity until the user chooses to explore further.
• Efficient Data Structures: Use graph representations like adjacency lists or matrices to streamline calculations and memory usage.

6. Align Design with User Goals

The purpose of a graph should be to drive its design. When structuring the visualization, consider the end user's needs and the insights they are seeking.

• Exploratory Graphs: For users exploring unknown data, prioritize interactivity and dynamic layouts to facilitate discovery.
• Explanatory Graphs: For presentations or reports, focus on clarity, aesthetics, and concise labels to emphasize key points.

7. Validate and Iterate

Before finalizing a graph visualization, test it with representative users to ensure it meets their needs. Solicit usability, clarity, and functionality feedback, and be prepared to iterate based on their input.

• User Testing: Observe how users interact with the graph and identify areas of confusion or frustration.
• Performance Benchmarks: Measure load times and interaction latency, particularly for large graphs.

Final Thoughts: Choosing the Right Node Graph Visualization Tool

Graph node visualization has become indispensable for understanding complex datasets, revealing patterns, and facilitating decision-making. Visualizing nodes and edges provides clarity and insight that raw data alone cannot, whether you are analyzing social networks, mapping dependencies, or exploring relationships in scientific data.

This article compared two powerful tools—JavaFX and Python—for implementing node graph visualizations. Each tool offers distinct advantages and serves specific use cases:

• JavaFX excels in creating high-performance, highly interactive desktop applications. Its customization capabilities and integration with the Java ecosystem make it a preferred choice for large-scale, real-time, or desktop-focused projects.
• Python stands out for its simplicity, rapid prototyping capabilities, and integration with data analysis workflows. Its extensive library ecosystem enables developers to create both static and dynamic visualizations with minimal effort, particularly for web-based or research-focused applications.

About The Author

Caroline Scharf, VP of Operations at Tom Sawyer Software, has 15 years experience with Tom Sawyer Software in the graph visualization and analysis space, and more than 25 years leadership experience at large and small software companies. She has a passion for process and policy in streamlining operations, a solution-oriented approach to problem solving, and is a strong advocate of continuous evaluation and improvement.

FAQs

What is the main purpose of graph node visualization?

The primary purpose of graph node visualization is to simplify the understanding of complex relationships and interconnected systems. This visualization technique helps users identify patterns, clusters, or anomalies within datasets by representing entities as nodes and their connections as edges. It transforms raw, abstract data into actionable insights, enabling better decision-making and effective communication of information.

In which fields is graph node visualization most commonly used?

Graph node visualization is used across diverse fields:

• Social Networks: Analyzing relationships, influence, and connectivity among users.
• Network Analysis: Visualizing IT infrastructures or transportation networks to detect inefficiencies or vulnerabilities.
• Biology and Medicine: Studying interactions among genes, proteins, or neural networks.
• Business Intelligence: Mapping customer relationships, workflows, or supply chains.
• Software Engineering: Representing code dependencies, architectures, or workflows.
• Urban Planning: Modeling city infrastructures like transportation or utility networks.

How do I decide between a static or interactive graph?

The choice depends on your project goals and audience:

• Static Graphs: Suitable for reports, presentations, or publications where the focus is on conveying a clear, well-defined story. Use these for datasets that don’t require real-time exploration or when portability is essential.
• Interactive Graphs: Ideal for exploratory analysis, large datasets, or web-based applications. Interactivity allows users to zoom, pan, filter, and click on elements for deeper insights, making them suitable for tools like dashboards or research platforms.

How can I optimize performance for large node graphs in JavaFX?

Optimizing large node graphs in JavaFX requires a combination of techniques:

• Use Hardware Acceleration: Leverage JavaFX’s built-in hardware acceleration for smooth rendering.
• Graph Simplification: Cluster similar nodes or remove non-essential edges to reduce visual clutter.
• Lazy Loading: Render only the visible portions of the graph and load additional data as needed during interactions.
• Efficient Layouts: Precompute graph layouts or use lightweight algorithms to minimize computation during rendering.
• Caching: Cache static elements of the graph to avoid repeated calculations.
• Event Handling: Optimize mouse and keyboard event listeners to avoid unnecessary overhead.

What Python libraries are best for creating interactive node graphs?

Several Python libraries excel at creating interactive node graphs:

1. PyVis: A browser-based library for creating highly interactive and visually appealing graphs, ideal for web applications.
2. Plotly: Offers powerful interactivity, including zooming, filtering, and tooltips, for embedding graphs into web or notebook environments.
3. Dash: Built on Plotly, it allows the creation of full-featured interactive dashboards with integrated graph visualizations.
4. NetworkX (with Matplotlib): While primarily used for analysis, it can be paired with Matplotlib for basic interactive graphs or PyVis for more dynamic visualizations.
5. Bokeh: Enables interactive visualizations with smooth transitions and customizable elements, suitable for web-based use.

Each library serves different needs, so the choice depends on your project’s complexity, interactivity, and deployment requirements.

Are there alternatives to JavaFX and Python?

Tom Sawyer Perspectives is an alternative to JavaFX and Python and allows for more custom graph visualizations. Perspectives is a low-code graph visualization and analysis development platform including a Java SDK. Integrated design and preview interfaces and extensive API libraries allow developers to quickly create custom applications that intuitively solve big data problems.

It provides features such as nested drawings, advanced node and edge labeling, precise shape clipping, port and connectors controls, and incremental layout to see the superstructure of your data and produce visually clear graphs that are understood by domain experts and stakeholders alike.

Perspectives includes five interactive graph layout algorithms: Bundle, Circular, Hierarchical, Orthogonal, and Symmetric. Bundle layout intelligently combines (or bundles) related edges between nodes into one. So instead of seeing five edges leading from five nodes to a common destination, some of those edges bundle together, making the overall graph easier to read. Circular layout discovers clusters, and emphasizes them in the drawing while highlighting the superstructure and detail of the overall graph. Hierarchical layout emphasizes dependency relationships and flows. Orthogonal layout produces high-precision visualizations of complex graphs that have many edges, nested components, or specific connection points on nodes. Symmetric layout emphasizes connected nodes by placing them close to each other and drawing edges with straight lines. This layout is particularly useful for graphs that represent structures that happen in real life such as social or computer networks.

Perspectives is an excellent alternative to JavaFX and Python when graph visualization and analysis requirements are extensive and complex.
