Grafana Graph Visualization Explained

Grafana’s graph visualization capabilities are frequently used by organizations that need quick visibility into system metrics and performance trends. While the platform supports a range of time-series visualizations, its graph panel remains a central tool for interpreting operational data. This article examines how Grafana graph visualizations function, where they provide value, and in which scenarios teams may require more advanced, structure-aware solutions.

What Is Grafana Graph Visualization?

Grafana Graph Visualization refers to using Grafana’s graph panel and related features to create interactive, real-time representations of data over time. It allows users to turn complex metrics into intuitive, time-series charts that accurately reveal trends, anomalies, and operational insights.

At its core, Grafana is an open-source analytics and monitoring platform. It connects to various data sources—including time-series databases, cloud services, and infrastructure metrics—and visualizes this data through customizable dashboards. Within that environment, the graph visualization component plays a key role by enabling users to render time-dependent data in forms such as line charts, bar graphs, and heatmaps.

Grafana Graph Visualization is especially effective for telemetry-rich environments like microservices architectures, IoT systems, and distributed infrastructures. It provides instant feedback on system health, latency, resource usage, and behavioral changes across time.

Because Grafana’s architecture supports plugins and advanced queries, teams can tailor visualizations to match domain-specific logic and performance thresholds. Whether monitoring network traffic or user transactions, the graph panel helps transform abstract metrics into actionable insight.

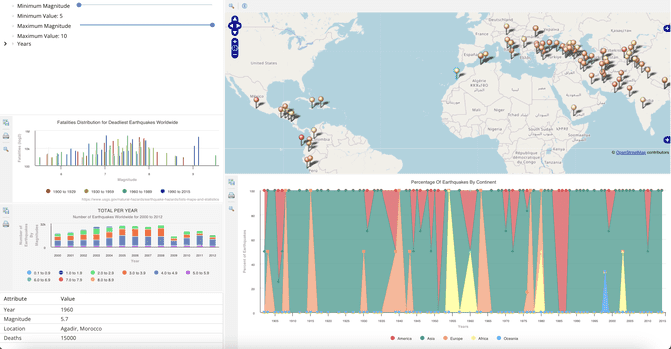

 An example of a dashboard application of maps and various charts of information.

Benefits of Grafana Graph Visualization for Time-Series Data

Grafana’s graph visualization engine is optimized for metrics that change over time, such as CPU usage, response latency, database throughput, and sensor activity. This makes it especially well-suited for operational environments where clarity and responsiveness are critical.

Key benefits of using Grafana Graph Visualization include:

• The ability to process and render large datasets with minimal latency
• Fine-grained control over query logic, time ranges, and filtering options
• Native support for threshold-based alerting directly within the graph view

By visualizing metric behavior over time, Grafana enables users to understand both current system conditions and emerging trends. These graph visualizations help decision-makers respond more quickly, fine-tune performance, and proactively prevent issues before they escalate.

Getting Started with Grafana Graph Visualization

Prerequisites and Installation

To begin using Grafana Graph Visualization, you need a working Grafana instance and a connected data source capable of delivering time-series or event-based metrics. Grafana runs on all major platforms and can be deployed on local machines, virtual infrastructure, container environments, or as a managed cloud service.

The installation is efficient and well-documented. Grafana can be installed using Linux packages for Debian or RPM-based systems, launched via Docker, or provisioned instantly through Grafana Cloud, which provides hosted dashboards without local setup.

Once installed, Grafana exposes its web interface (default on port 3000), where you begin configuring the environment—setting admin credentials, defining initial data sources, and preparing the dashboard canvas where graph visualizations will live.

Setting Up Your First Grafana Graph Visualization

After installation, the first step in building Grafana Graph Visualizations is connecting a data source. This could be Prometheus for infrastructure metrics, InfluxDB for IoT telemetry, or PostgreSQL for structured business data. Once connected, Grafana tests the source and confirms that queries can return data successfully.

From there, you create a new dashboard and begin adding panels. Each panel is an opportunity to translate raw metrics into meaningful trends—line graphs that reflect API latency, bar charts for regional throughput, or time-based graphs showing system health over hours or days.

What’s powerful about this workflow is that it doesn’t require extensive configuration. Within minutes, users can begin visualizing live metrics, filtering by time, and building dashboards that provide real-time operational insight. Grafana’s graph panel becomes the central element in this transformation, enabling users to move from data to decisions, visually and interactively.

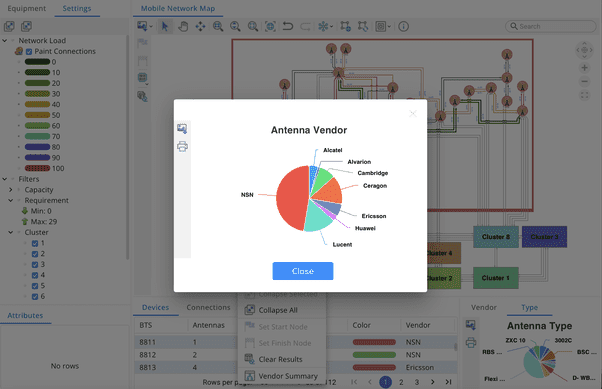

An example microwave antenna network application showing a pie chart of different antenna vendor brands.

Creating a Grafana Graph Visualization

Choosing a Data Source for Grafana Graph Visualizations

Grafana Graph Visualization starts with data, and Grafana itself doesn’t store any. Instead, it connects to existing systems and renders data from those sources into time-based graphs and dashboards. That makes selecting and configuring a data source the first foundational step in building an effective graph visualization in Grafana.

Grafana supports a broad spectrum of data backends, including time-series databases like Prometheus and InfluxDB, traditional relational databases such as MySQL and PostgreSQL, and cloud-native platforms like AWS CloudWatch and Google Cloud Monitoring. It also integrates with log systems like Loki, enabling side-by-side visualization of metrics and logs within the same dashboard environment.

The optimal data source depends on the nature of your system. Prometheus is ideal for collecting and visualizing infrastructure metrics. PostgreSQL, on the other hand, offers a more structured approach for business or transactional data. Grafana allows users to connect multiple sources simultaneously, which is especially valuable when dashboards are intended to reflect multiple layers of the same system, from infrastructure telemetry to application-level insights.

When building a Grafana Graph Visualization, the data source determines what you can ask and how quickly you’ll get answers. A well-configured connection ensures both performance and precision in your visuals.

Configuring a Data Source for Graph Visual Output

Adding a data source in Grafana is a guided, low-friction process. From the connections panel, users select the source type and provide connection details like the endpoint address, authentication method, and any additional configuration parameters required by the backend system.

Once the connection is saved, Grafana tests it immediately. If successful, the data source becomes instantly available for use in dashboards and specifically for creating graph visualizations via the graph panel.

For SQL-based sources such as MySQL or PostgreSQL, users build visualizations by writing custom queries directly in the panel editor. Grafana executes these queries and returns the data in real time, allowing users to tweak syntax, filters, or groupings and see immediate visual feedback.

When working with Prometheus, Grafana supports PromQL—a powerful query language designed for time-series analysis. PromQL allows users to slice data by label, apply rate functions, and group or aggregate over time. It’s especially useful when graphing live infrastructure behavior or service-level metrics.

One of Grafana’s strongest features is this tight coupling between data, query, and output. You don’t have to leave the editor to validate what your query is doing—the graph updates as you refine the logic. This real-time loop not only accelerates learning but also builds confidence that the visualizations truly represent what’s happening in your system.

Understanding Grafana’s Graph Panel for Effective Graph Visualization

Selecting Metrics for Visualization

At the core of Grafana’s visual capabilities is the Graph panel—the primary tool used to build time-series visualizations that reveal patterns, trends, and anomalies in real time. When setting up a Grafana Graph Visualization, the process begins with choosing the right metric to display.

In practice, this means writing a query that targets specific data from a connected source. For relational data, SQL is used; for time-series platforms like Prometheus, it’s PromQL. Whether you’re tracking latency, CPU load, or service error rates, the query defines the structure, while Grafana handles the presentation.

When multiple series are returned, Grafana renders each as a separate line or element. From there, users can refine which values are included by applying filters, grouping, or transformations—all within the same interface.

Working with Queries and Filters in Graph Panels

Grafana’s graph panel is designed for interactive iteration. As you adjust a query, the visual updates immediately, allowing real-time testing and refinement without switching context.

Filters can be applied in-line within the query or externally via dashboard variables. For example, defining a variable for hostname lets users dynamically explore system load across different nodes, without having to duplicate panels or rewrite queries.

Grafana also supports mathematical expressions and time-aware functions such as rate() or timeShift(), which allow users to extract more nuanced behavior from their data. These tools are essential for comparing performance across time intervals or diagnosing shifts in operational behavior.

The Role of the Time Filter

Every Grafana Graph Visualization is framed by a time filter—a global control that defines the time window for all panels in the dashboard. By default, this filter covers the last hour, but it can be adjusted to zoom in on short-term anomalies or expanded to analyze historical trends.

Unless specifically overridden, panels inherit this global time setting. This ensures consistency across visualizations, especially important when troubleshooting correlated events or monitoring dependencies across systems.

More than just a display option, the time filter serves as a powerful analytic layer. It gives users contextual insight, helping them interpret not just what is happening, but when and why—a critical feature for real-time environments where timing is often as important as the data itself.

Customizing the Look and Feel of Grafana Graph Visualizations

Grafana Graph Visualization isn't just about displaying data—it’s about making complex information visually interpretable. How you configure graph styles, titles, and visual context can determine whether users act with clarity or confusion. Grafana’s customization tools give you control over how data is presented, without requiring design expertise.

Chart Styles and Visualization Types in Grafana

The way data is presented can often be just as important as the data itself. Grafana offers a range of visualization options tailored to different types of analysis. Line graphs are ideal for trends over time, bar charts work well for categorical comparisons, stat panels distill key metrics into a single, glanceable value, and heatmaps are better suited for dense, high-frequency data.

Choosing the right style isn’t just about preference—it’s about aligning form with function. A time-series chart showing CPU usage should be readable at a glance, highlighting spikes and patterns. In contrast, a business report might benefit from discrete bar segments that break down activity by region or department.

Grafana makes switching between visual types seamless. You can transform a line graph into a bar chart or a heatmap without redoing the entire panel. This encourages experimentation and helps users find the most effective format for the story they’re trying to tell.

Editing Labels, Titles, and Legends in Graph Visualizations

A good visualization doesn’t require explanation. Grafana makes it possible to control every label, title, and legend element directly within the panel editor. This means your graphs can speak for themselves, without forcing viewers to decode query names or guess what each line represents.

Titles can be edited to reflect the panel's intent—for example, “Request Latency (ms)” tells a clearer story than “Query A.” Axis labels can be customized to match units, and legends can be repositioned or hidden entirely depending on layout needs.

It’s a small investment of time that pays off in clarity. When visualizations are well-labeled, they become tools for collaboration, not just personal insight.

Choosing the Right Graph Style for Your Data

Grafana doesn’t assume one-size-fits-all. What works for system metrics might not work for customer analytics. That’s why the platform supports a wide visual vocabulary—from simple trends to complex histograms and composable panels that blend multiple types in a single view.

The best choice depends on the kind of decisions users need to make. When the goal is early detection of anomalies, sparklines with minimal noise are ideal. When presenting a monthly report to a broader audience, cleaner bar charts and annotations improve communication.

Grafana allows you to prioritize clarity over complexity. Each change you make in the panel editor is visible in real time, allowing you to judge whether your data is more understandable, not just more colorful.

When Grafana Graph Visualization Isn’t Enough: Exploring Interactive and Relational Models

Using Dashboard Variables

Grafana’s variable system enables dashboards to adapt to dynamic operational environments without the need for duplication. Instead of building separate dashboards for each service, location, or node, variables allow a single view to respond intelligently to user input.

Variables are defined centrally and used directly within query expressions. A variable such as $region or $instance_id can act as a control layer for filtering data in real time. As values are selected, all associated panels update, enabling contextual exploration of systems without modifying the underlying configuration.

This level of abstraction supports scalability. In complex environments with dozens of services or hundreds of monitored entities, variables reduce cognitive load and surface insights more efficiently.

Setting Up Alerts and Thresholds

For mission-critical systems, timely awareness of change is essential. Grafana provides an integrated alerting engine that continuously evaluates metrics against defined rules. Alerts are triggered automatically when thresholds are breached, such as sustained latency across a cluster or deviation in network throughput.

Each alert is defined by conditions, evaluation intervals, and notification channels. Grafana integrates with enterprise-grade tools like PagerDuty, ServiceNow, and custom webhook handlers. Alerts can be visualized inline on graph panels, reinforcing situational awareness even before action is taken.

Thresholds serve both functional and communicative purposes. In operational dashboards, clearly marked limits convey risk and boundary conditions directly on-screen, enabling quicker recognition and more confident decisions under pressure.

Enabling User Input and Interaction

Beyond real-time visualizations, Grafana enables dashboards to function as interfaces for interaction. Through drop-downs, text fields, and linked dashboards, users can interrogate systems from multiple perspectives without needing to adjust backend logic.

In environments such as multi-region deployments or hybrid cloud topologies, this interaction layer becomes a bridge between static monitoring and active operational control. Instead of consuming data passively, users can shift focus, refine inputs, and trigger comparative views on demand.

Dashboards become tools of inquiry. They’re no longer just windows into systems— they’re entry points into structured analysis.

Limitations of Grafana and Graph-Based Alternatives

Grafana excels at visualizing flat metrics and numeric time-series data. But raw values alone fall short of providing real insight in systems defined by complexity—layered dependencies, directional flows, and interconnectivity.

That’s where Tom Sawyer Perspectives comes in. It’s built for environments where understanding relationships matters just as much as measuring results. Instead of simply showing what is happening, Tom Sawyer Perspectives helps you know why it’s happening—and what it might trigger next.

Tom Sawyer Perspectives delivers graph-based system visualizations that capture how systems behave, not just what they produce. It enables you to trace impacts across components, identify root causes, and simulate downstream effects with clarity that no flat metric dashboard can offer.

This distinction matters when operational decisions rely on system logic, not snapshots. In those moments, data turns into foresight.

Troubleshooting Issues in Grafana Graph Visualizations

Even well-built Grafana dashboards can occasionally encounter issues, especially when visualizing complex, time-sensitive data. From missing panels to query errors and performance lags, problems can impact the clarity and reliability of your Grafana Graph Visualizations. This section outlines practical solutions to the most common obstacles.

Missing Data or Panels Not Loading

When panels fail to display expected data, the root cause often lies with the data source. It might be temporarily unreachable, misconfigured, or experiencing latency that delays responses beyond the dashboard’s time window. Sometimes the issue is simpler: the selected time range simply doesn’t contain any data points, particularly in systems that report at irregular intervals.

Start by verifying the data source connection. Grafana includes a built-in test feature to confirm whether the platform can communicate with the source. If the connection is valid, review the query scope: time filters, applied variables, and custom overrides may unintentionally exclude relevant results.

In some cases, local caching or stale browser sessions may obscure changes. A full refresh—or clearing the panel’s query cache—often resolves the issue.

Query Errors and Debugging

Syntax and logic errors in queries are a common cause of broken or incomplete graph panels. For SQL sources, double-check table names, field aliases, and column casing. In time-series systems like Prometheus or InfluxDB, be sure that expressions are syntactically correct and include required time filters.

Grafana’s query inspector is indispensable for debugging. It displays the exact query being sent and the raw response, making it easier to spot where logic diverges from expectations.

Even when queries are technically correct, poor formatting or unexpected nulls can make the graph unreadable. Tuning the panel settings—especially axis scaling and null value handling—often restores clarity without having to rewrite the entire query.

Performance Optimization in Graph Visualizations

Dashboards that include numerous high-frequency queries can quickly become resource-intensive. If rendering slows down or panels time out, consider adjusting the panel refresh rate or limiting the query’s time range. Use aggregation functions like rate() or avg_over_time() to reduce the volume of data returned, without losing analytical precision.

Variables can also introduce load issues if they trigger multiple dependent queries simultaneously. Using default values or chained variables can help manage that load intelligently during the initial dashboard load.

When simple tuning isn’t enough, inspect server logs or use browser developer tools to trace bottlenecks. Grafana-side latency and upstream data source delays often manifest differently, and distinguishing the two helps in applying the correct fix.

In high-stakes environments, where real-time insight depends on consistency, scalability, and structural accuracy, metric-based visualization may fall short. Tom Sawyer Software provides a model-driven alternative: systems that don’t just chart values, but reflect how components relate, interact, and evolve. It’s the level of control and context needed when troubleshooting goes beyond queries—and into system behavior itself.

Conclusion

Grafana delivers a robust and flexible foundation for time-series monitoring and visualization. Its strength lies in unifying diverse data sources into interactive dashboards that provide real-time operational clarity. For many organizations, it enables rapid exploration of metrics, system states, and performance trends—all within a scalable, open-source ecosystem.

When it comes to Grafana Graph Visualization, the platform excels at turning raw data into visual narratives that highlight spikes, gaps, and system behaviors. Its graph panel and query tools empower users to build insightful dashboards with minimal setup and high adaptability.

Yet, not all systems can be understood through metrics alone. Many operational environments are governed by dependencies, flows, and structural relationships that extend beyond individual values or trends. In such contexts, visualizing connections—not just conditions—becomes essential.

This is where Tom Sawyer Perspectives offers strategic depth. By enabling model-driven visualization, structural intelligence, and real-time interaction across complex architectures, Tom Sawyer Software solutions provide a view into why things happen—not just when. Whether for critical infrastructure, supply chain systems, or cyber environments, the ability to explore relationships and systemic behavior transforms dashboards into true decision-making tools.

In systems that demand both speed and structure, surface-level visualization isn't enough. That difference isn't cosmetic for teams tasked with building, managing, or optimizing high-impact environments—it’s operational.

About the Author

Caroline Scharf, VP of Operations at Tom Sawyer Software, has 15 years experience with Tom Sawyer Software in the graph visualization and analysis space, and more than 25 years leadership experience at large and small software companies. She has a passion for process and policy in streamlining operations, a solution-oriented approach to problem solving, and is a strong advocate of continuous evaluation and improvement.

FAQ

How do I export a Grafana Graph Visualization?

You can export a Grafana graph visualization in several ways. The most straightforward options include downloading a panel as an image, generating a shareable link (public or private), or exporting the entire dashboard or individual panels as JSON through the Grafana API. This is particularly useful for backup, version control, or sharing configurations across environments.

Can I embed Grafana Graph Visualizations into external platforms?

Yes, Grafana supports embedding of graph visualizations via iframes. This includes public snapshots or secure, tokenized links that enable dashboards to be displayed in portals, intranets, or third-party apps.

How can I automate reporting from Grafana Graph Visualizations?

Grafana’s open-source edition does not include built-in scheduling for automated reports. Plugins and enterprise features allow users to send snapshots or PDFs at set intervals, and scripting against the Grafana API enables further automation.

What is the best graph type in Grafana for time-series visualizations?

For most time-series scenarios, the default line chart in Grafana’s graph panel offers the clearest insight, especially for tracking trends, detecting anomalies, and enabling continuous monitoring. Features like thresholds, annotations, and multi-series overlays further enhance visibility depending on the use case.

The best chart type ultimately depends on the question being answered. Clean lines work best for simple trend analysis, while event density may call for heatmaps or histograms.

But when the question shifts from “what’s happening?” to “how are things connected?”, Grafana’s traditional charts may not suffice. For cases involving network topology, layered dependencies, or causal flows, you need more than just signals—you need structure.

That’s where Tom Sawyer Software comes in. It delivers graph-based visualizations that reveal how entities relate and interact across systems, unlocking insights that flat metrics can’t provide. It’s the missing layer when raw values are just one piece of the story.
