Large-Scale Graph Visualization: Strategies and Techniques

Graph data is embedded in the core of many modern systems — from cybersecurity and financial risk analysis to logistics and academic research. As datasets become larger and more interconnected, the challenge of making sense of them visually becomes critical. At scale, traditional graph tools break down. Interfaces slow, visual clarity disappears, and user control is lost.

This article examines what it takes to visualize large-scale graphs in a practical, interpretable, and efficient way. It explores strategies for reducing visual complexity, techniques for optimizing layout and interactivity, and the role of semantic structure in navigating dense networks. It also looks at practical examples and compares tools built to handle massive graph data, including Tom Sawyer Perspectives and research platforms like the Stanford CS data mining project.

The goal is not just to display big data, but to expose relationships that drive insight and action.

Why Large-Scale Graph Visualization Matters

Understanding relationships is often more important in today's data landscape than analyzing isolated values. Graphs provide a natural way to model these relationships between users and devices, accounts and transactions, or concepts and content. As systems grow, the number of entities and their interconnections can become unmanageable without a visual strategy.

When graphs reach a certain scale, the traditional idea of “visualizing the whole” breaks down. A million-node graph is no longer something to observe at once—it’s something to navigate, interpret, and query. Without scalable visualization, users lose access to patterns and structures that could guide decision-making or reveal emerging risks.

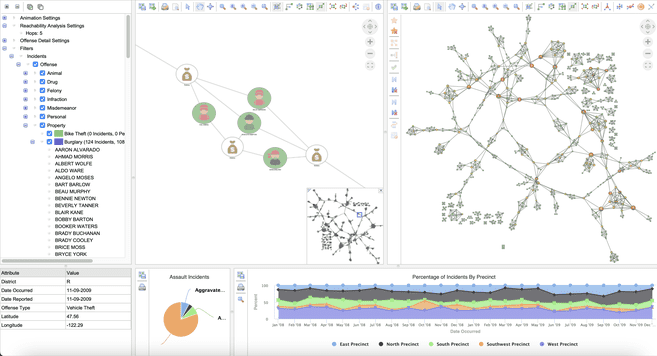

A large-scale graph visualization and supporting chart views of a large criminal network.

Modern Data Complexity and the Role of Graphs

The types of data modeled in graphs today are more complex than ever. In semantic applications, for instance, graphs represent abstract ideas and ontologies, requiring visual clarity across conceptual layers. In cybersecurity or infrastructure monitoring, the challenge lies in correlating highly dynamic and distributed data sources.

These domains require more than basic node-link diagrams. They demand interactive environments that help users trace dependencies, isolate clusters, and identify anomalies without being overwhelmed by visual clutter. This is where graph visualization becomes not just helpful, but necessary.

Graphs are no longer a niche modeling tool; they’re a foundation for representing meaning in systems where relationships define value. Making that structure visible—and navigable—is what gives organizations the ability to act on complexity.

The Need for Scalable Visual Insights

Rendering a graph is not the same as understanding it. Many tools can technically display large networks, but fail to make them interpretable. Users are presented with dense, unreadable diagrams that may look impressive, but provide little guidance.

Scalable insight depends on techniques that prioritize relevance over completeness. Filtering, abstraction, and semantic context are essential. So is performance: if users can’t interact with the data smoothly, they stop engaging with it altogether.

This shift from passive rendering to active exploration is at the heart of modern graph visualization. It turns large, connected data into something that can be used, not just seen.

Core Challenges in Visualizing Massive Graphs

Rendering Millions of Nodes and Edges

Scaling a visualization engine to support millions of entities is not just a matter of raw performance. It's about finding layout strategies and data structures that enable partial rendering and prioritized loading. Attempting to draw everything at once leads to overload—not just for the rendering engine but also for the user’s visual processing.

Techniques like viewport-based rendering, canvas layering, and out-of-view pruning help manage the load. Systems that handle scale efficiently typically employ adaptive algorithms that prioritize visible regions while deferring background layout computation.

Maintaining Interactivity at Scale

Responsiveness becomes one of the first casualties of scale. Lag during zooming or dragging destroys the illusion of control, which is central to visual exploration. Interactivity suffers further when each user action, such as clicking a node, triggers expensive layout recalculations or database queries.

To mitigate this, performant systems decouple layout and rendering. Layouts can be precomputed or updated incrementally, and interaction handlers are often optimized to bypass layout reflows. Caching, lazy loading, and parallel computation all help keep the system usable when data volume is high.

Avoiding Information Overload

Even if performance is under control, visual overload is a separate risk. Large graphs contain many irrelevant or redundant connections from the perspective of any given question. Users may fail to extract any actionable insight without abstraction, filtering, or prioritization.

This is where context-aware design becomes essential. Systems that adapt to the user's current focus—by fading peripheral nodes, clustering similar elements, or surfacing semantic relationships—reduce perceived complexity without omitting important structure.

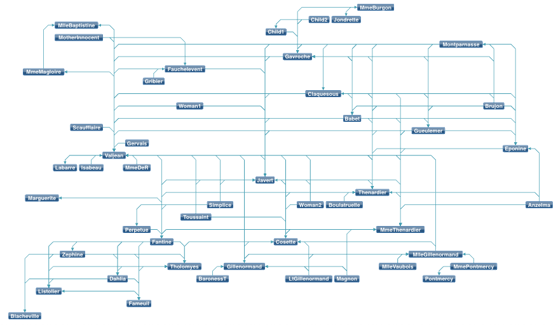

A graph produced with Tom Sawyer Perspectives that is laid out with bundle layout that collapses edges into a single line to reduce visual clutter.

Proven Techniques for Effective Large Graph Visualization

Graph Density Reduction Strategies

When working with massive graphs, clarity is achieved not by displaying more but less, more intentionally. One of the most effective ways to accomplish this is by reducing the graph’s density. This can involve focusing only on nodes or edges that meet specific criteria such as relevance, timestamp, or weight. These selective views prevent overload and allow users to engage with the dataset more purposefully.

Filtering, Clustering, and Abstraction Layers

Beyond simple filtering, abstraction techniques help restructure complexity. Grouping nodes into communities or semantic categories makes it easier to understand higher-level patterns. Users can zoom into or out of these groups, shifting from detailed to conceptual views as needed. This approach is essential in semantic graph visualization, where multiple layers of meaning coexist.

An interactive graph of towers in a microwave network produced with Tom Sawyer Perspectives that clusters towers by manufacturer and enables selective expansion and contraction of clusters.

Level-of-Detail and Progressive Rendering

Even with optimized layout and abstraction, rendering everything at once is rarely feasible. Progressive rendering allows parts of the graph to load incrementally, keeping the interface responsive from the start. Combined with level-of-detail rendering, which changes visual complexity based on zoom level, this technique enables smooth navigation, even in very large graphs.

Some systems use background layout recalculations and caching strategies to maintain performance as users explore or update the data. This ensures that interactivity isn’t compromised, regardless of dataset size.

A graph produced with Tom Sawyer Perspectives showing different levels of detail as you zoom in.

Tools Built to Handle Scale

Native Capabilities in Tom Sawyer Perspectives

Tom Sawyer Perspectives was built with scale in mind. Its rendering engine supports large graph datasets without relying on external plug-ins or specialized hardware. What sets it apart is not just the ability to display a high volume of nodes and edges, but to do so while maintaining interactivity and clarity.

One of the key features is dynamic abstraction. The software allows users to define rules for grouping, collapsing, or filtering parts of the graph in real time. This becomes especially valuable in domains such as semantic modeling, where graphs represent layered meaning, not just structure. In those scenarios, Tom Sawyer Software’s approach aligns closely with the demands of semantic graph visualization, enabling users to navigate from broad conceptual overviews to detailed connections fluidly.

The layout engine also offers built-in support for hierarchical, orthogonal, and circular arrangements, giving users flexibility in how information is presented.

More than a visualization toolkit, Perspectives integrates data access, transformation, and UI control, making it a complete platform for graph-based applications.

Comparison with Open Source Alternatives

Open source tools offer flexibility and community support, but are not suitable for enterprise-class or large-scale scenarios. Gephi, for instance, performs adequately with small to medium graphs, especially for exploratory analysis. However, its performance and UI responsiveness can degrade when working with more elements. It also lacks built-in support for semantic layering or rule-based abstraction.

Other tools like Cytoscape and Sigma.js offer customization options but generally require significant manual configuration to scale effectively.

While open source projects provide some value for prototyping and narrow use cases, enterprise-level deployments demand tighter integration, layout control, and performance optimization—areas where Tom Sawyer Perspectives offers distinct advantages.

It’s worth noting that even academic projects, like the Stanford CS Data Mining Graph Visualization Project, often rely on specialized internal tooling to meet their performance needs. The fact that such research efforts invest in custom solutions indicates how complex and nuanced large-scale graph visualization has become.

Real-World Applications of Scalable Graph Visualization

Cybersecurity and Threat Mapping

In cybersecurity, the speed at which a system can visualize connections often determines how fast an analyst can respond to a threat. Large-scale graphs are used to model communication patterns, access relationships, and lateral movement within networks. The challenge is not just rendering the graph, but making it possible to isolate suspicious clusters, track propagation paths, and correlate behaviors across time.

Effective threat mapping requires real-time interaction with high-volume data, often in dynamic environments where the graph evolves constantly. Visualization systems must be capable of loading, filtering, and recomputing layouts on the fly, without freezing or losing context. Here, semantic graph techniques also prove valuable, allowing different layers of abstraction, such as user identities, devices, or protocols to coexist within the same view.

Financial Network Analysis

Financial systems often involve densely interconnected entities—accounts, transactions, counterparties—where hidden relationships may signal fraud, collusion, or regulatory risk. Visualizing these networks at scale requires more than surface-level rendering. Patterns such as circular flows, multi-hop paths, and time-sensitive dependencies must be made visible and traceable.

Enterprise teams working in anti-money laundering or trading surveillance frequently rely on graph-based dashboards that combine semantic labeling with interaction history. This makes clarity, responsiveness, and context retention essential.

Supply Chain Risk and Optimization

Modern supply chains are complex, global, and exposed to multiple forms of disruption—from logistics delays to geopolitical events. Graph visualization helps reveal indirect dependencies that are often hidden in spreadsheets or tabular reports. A factory in one region may be indirectly linked to a critical material sourced several layers upstream.

These graphs often include thousands of locations, suppliers, and inventory lines at a large scale. Visualization tools must allow users to trace paths, simulate failure points, and assess how local changes propagate through the system. Filtering by region, product, or vendor class becomes essential.

Semantic graph modeling again proves useful. When entities in the graph are labeled not just as “nodes” but as types—such as manufacturer, port, raw material, or regulatory checkpoint—it becomes possible to query and visualize the system based on meaning, not just structure.

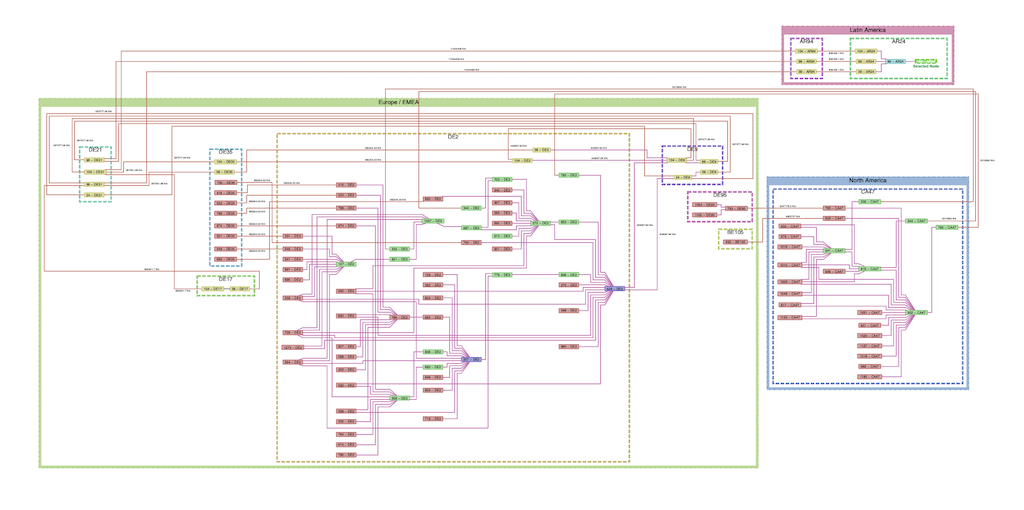

An example supply chain diagram produced with Perspectives showing the relationships of materials grouped by source country.

Expert Tips for Building Interactive Graph Experiences

Designing visualizations that merely render correctly is not enough. The real goal is to create interactive graph environments where users can confidently explore, ask questions, and extract insight. Achieving this requires attention to data and layout, and how users think, behave, and make decisions when interacting with complex systems.

Designing with the End-User in Mind

User needs vary depending on domain, role, and use case. A security analyst scanning for anomalies, a researcher exploring citation networks, and a logistics manager tracking supply dependencies will each navigate graphs differently.

Effective visualizations account for this by offering intuitive entry points and meaningful defaults. That might mean starting with a filtered view based on context, surfacing recent changes, or presenting a simplified overview before allowing deeper exploration. The visual structure should anticipate the kinds of questions users will ask, not force them to interpret a raw graph from scratch.

Visual encodings must also align with user expectations. For example, positioning similar nodes close together or visually differentiating node types (e.g., people vs. events vs. locations) can reduce cognitive friction. This becomes particularly important in semantic graph visualization, where users rely on conceptual categories to make sense of the structure.

Optimizing Data Pipelines for Visualization

Interactivity is often limited not by rendering engines, but by slow or inefficient data preparation. Raw graph data may require multiple transformations—deduplication, enrichment, and indexing—before it can be visualized effectively.

Successful systems build in pre-processing steps that are aligned with how the data will be queried and presented. This may include computing metrics like centrality or community detection scores ahead of time, structuring data into layers for progressive loading, or materializing semantic groupings so that filtering is both fast and meaningful.

In enterprise environments, graphs are frequently updated in near real-time. Handling this requires more than stream ingestion—it calls for intelligent caching, incremental layout updates, and a data model that supports flexible transformation without interrupting the user’s flow.

Frontend Considerations and UX Best Practices

On the front end, choices about interactivity, animation, and feedback directly impact usability. Users should be able to manipulate the graph without delay, understand what each element represents, and access related data when needed—all without leaving the visualization context.

Smooth zooming and panning, context-aware tooltips, and keyboard navigation all contribute to fluid exploration. But these features must be carefully tuned: overly aggressive animations can cause disorientation, while too much detail at once can overwhelm the display.

Responsiveness to user input is particularly critical in large-scale contexts. Systems should prioritize frame rate and input latency above decorative effects. In this sense, performance is not a purely technical goal—it’s a design principle that affects comprehension, decision-making, and trust.

Conclusion: Make Scale Work for You

Working with large-scale graph data is not simply a matter of rendering more—it’s about rendering better. The tools, techniques, and frameworks discussed here are not just technical solutions, but enablers of understanding. At scale, visualization stops being cosmetic and becomes strategic.

Effective large-graph visualization aligns with user intent, adapts to data complexity, and supports performance without sacrificing clarity. Whether it’s through abstraction layers, semantic enrichment, or responsive layouts, the objective remains the same: helping users find signal in complexity.

Used in mission-critical data systems across industries including cybersecurity, intelligence, telecommunications, and systems engineering, Tom Sawyer Perspectives supports deep data exploration and link analysis supported by superior graph drawings. With automated schema extraction, a rich suite of visual data analysis tools, code-free pattern-based querying, and customizable layouts, Perspectives transforms complex, connected data into intuitive, interactive knowledge graph visualizations that enable data-driven decision making.

About the Author

Max Chagoya is Associate Product Manager at Tom Sawyer Software. He works closely with the Senior Product Manager performing competitive research and market analysis. He holds a PMP Certification and is highly experienced in leading teams, driving key organizational projects and tracking deliverables and milestones.

FAQ

How big is “too big” for graph visualization?

There’s no fixed threshold for when a graph becomes "too big"—it depends on the visualization goal and the system's capabilities. Graphs with millions of nodes can be processed for static analysis or batch rendering, but they’re rarely effective for real-time, interactive use.

What makes a visualization “actionable”?

An actionable graph visualization doesn’t just show structure—it supports decisions. This means it highlights what’s relevant, adapts to user intent, and allows the user to drill into details without losing context. Visual cues such as color, shape, and positioning must be tied to meaningful data properties, not just aesthetic choices.

Interactivity also plays a critical role. Users must be able to filter, search, trace relationships, and trigger deeper analysis from the visualization itself. In domains like fraud detection or system monitoring, a visualization is actionable if it helps the user detect patterns, isolate anomalies, or test hypotheses without switching to a separate tool.

Can Tom Sawyer Software handle dynamic graph updates?

Yes. Tom Sawyer Perspectives is designed to support dynamic, real-time graph updates. It allows developers to define rules for how the visualization responds to data changes—whether nodes are added, edges removed, or attributes updated.

The system supports incremental layout updates, meaning the entire graph doesn’t need to be recomputed with each change. This is essential for applications where data streams in continuously, such as monitoring systems or live dashboards. Combined with features like semantic grouping, rule-based styling, and dynamic filtering, Perspectives enables fluid interaction even as the underlying data evolves.

How does semantic modeling affect visualization performance?

Semantic modeling adds layers of meaning to graph data —by tagging nodes and edges with types, roles, or categories. While this increases complexity, it also opens up more targeted filtering, grouping, and styling. When integrated properly, semantic structure actually improves performance by enabling smarter abstraction and reducing the number of visible elements without losing informational depth.

How should teams evaluate graph visualization tools?

Tool selection depends on data size, frequency of updates, performance requirements, and integration needs. Teams should consider not only rendering speed and layout options, but also support for filtering, interactivity, semantic layering, and dynamic updates. Usability, maintainability, and the ability to embed or extend the tool within existing applications are also critical factors.

Can large graph visualizations be embedded into dashboards or reports?

Yes, Tom Sawyer Perspectives supports embedding through web components, APIs, or SDKs.
