JavaScript Code Visualization

What is JavaScript Code Visualization?

JavaScript code visualization refers to the practice of representing code and its execution through visual elements. This approach helps developers more intuitively understand the structure, flow, and behavior of their code. Historically, code visualization has evolved significantly from basic text editors to sophisticated tools that offer dynamic, interactive representations.

There are two primary types of code visualization in JavaScript:

1. Static Visualization: This type of visualization represents the code structure without executing it. They are useful for getting an overview of the code's architecture and dependencies.
2. Dynamic Visualization: This involves running the code and visualizing its execution in real-time. Dynamic visualizations provide insights into how the code behaves during execution, which is invaluable for debugging and optimization.

Benefits of JavaScript Code Visualization

JavaScript code visualization offers numerous benefits that enhance the overall development process:

1. Visualizing code structures and execution flows makes it easier to understand complex codebases. This is particularly useful when working with large or unfamiliar code.
2. Visual tools can highlight errors and inefficiencies, making the debugging process more intuitive and efficient. Seeing the code's execution flow helps identify logical errors and performance bottlenecks.
3. For beginners, visualizations can demystify coding concepts, making learning more engaging and less intimidating. Teachers and mentors can also use visual aids to explain difficult concepts more effectively.
4. Visual tools can streamline development workflows and improve communication among team members. Visual representations of code and architecture help teams align their understanding and expectations.

Tools for JavaScript Code Visualization

JavaScript code visualization tools encompass a range of libraries, platforms, and integrated development environment (IDE) extensions designed to help developers understand, debug, and optimize their code. Here are some of the most widely used tools, including libraries, platforms, and IDE extensions:

D3.js

D3.js is a highly flexible library for creating dynamic, interactive data visualizations in web browsers using JavaScript. It allows developers to bind data to a Document Object Model (DOM) and apply data-driven transformations to the document. D3.js stands out due to its extensive flexibility in design and implementation, making it ideal for creating complex and highly customized visualizations. It also benefits from vast community support and comprehensive documentation, which helps developers find resources and get assistance easily.

Chart.js

Chart.js is a simple yet flexible charting library for JavaScript that enables developers to create responsive, maintainable, and easily customizable charts. Its straightforward API allows for quick setup and easy integration into projects. Chart.js is lightweight and efficient, supporting various chart types, including line, bar, and pie charts. This makes it a versatile tool for different visualization needs, particularly for projects that require rapid development without the complexity of more powerful tools.

WebGL

WebGL is a JavaScript API that brings high-performance interactive 3D and 2D graphics to the web. It is particularly useful for applications requiring real-time graphics capabilities, such as game development, complex visualizations, and simulations. WebGL excels in high-performance rendering and offers extensive graphics and animation capabilities, making it indispensable for projects that need sophisticated visual interactions and real-time performance.

CodePen

CodePen is an online community platform designed for testing and showcasing user-created HTML, CSS, and JavaScript code snippets. It is a valuable tool for rapid prototyping and sharing code snippets, allowing developers to experiment with code and see the results in real time. CodePen’s real-time preview feature, coupled with community feedback and interaction, provides a collaborative environment where developers can refine their ideas and learn from each other. Its user-friendly interface makes it accessible for quick experimentation and learning.

Visual Studio Code Extensions

Visual Studio Code (VS Code) offers numerous extensions that enhance code visualization and debugging capabilities, providing a powerful environment for collaborative development. Extensions like "Live Share" support real-time collaboration, allowing multiple developers to work on the same code simultaneously. Tools such as "Debugger for Chrome" offer advanced debugging capabilities directly within the VS Code environment. These extensions integrate seamlessly with VS Code, enhancing its functionality without disrupting the workflow. Continuous updates driven by a robust community ensure that these tools remain relevant and effective.

Tom Sawyer Perspectives

Tom Sawyer Perspectives is a sophisticated platform designed for creating advanced, interactive visualizations of complex data. While it is not exclusively a JavaScript library, it integrates well with JavaScript and other web technologies, making it a powerful tool for developers looking to enhance their visualization capabilities.

Key Integration Points

1. Embedding Visualizations in Web Applications:
   • Visualizations created with Tom Sawyer Perspectives can be embedded into web applications using JavaScript. This allows for seamless integration of powerful visualizations into existing web interfaces, providing users with enhanced data interaction capabilities.
2. Data Binding and Manipulation:
   • JavaScript can be used to dynamically bind data to the visualizations. This is particularly useful for real-time applications where data changes frequently, and the visual representation needs to be updated accordingly.
3. Customization and Interaction:
   • Developers can use JavaScript to customize the behavior and appearance of visualizations. This includes adding interactive elements such as tooltips, zooming, panning, and filtering, allowing users to interact with the data more intuitively.
4. Integration with Data Sources:
   • JavaScript can facilitate the integration of Tom Sawyer Perspectives with various data sources, including APIs, databases, and real-time data streams. This ensures that the visualizations are always up-to-date with the latest information.

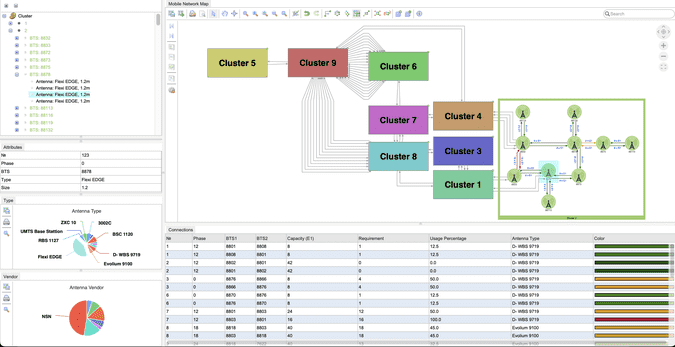

Visualization of the structure of a microwave network showing an expanded cluster of devices.

Use Cases for JavaScript Code Visualization

JavaScript code visualization has a wide array of applications across various domains. Here are some notable use cases:

Visualizing Code Structure

• Dependency Graphs: Visual representations of code dependencies can help developers understand how different parts of the codebase interact with each other. This is particularly useful for refactoring and modularizing code.
• Class Hierarchies: Visualizing class hierarchies allows developers to see inheritance patterns and relationships between classes, aiding in the comprehension of object-oriented designs.
• Module Interactions: Diagrams showing how different modules or components communicate can help identify potential areas of improvement or optimization.

Debugging and Optimization

• Execution Flow: Visualizing a program's execution flow helps identify logical errors and understand how the program processes data step-by-step. This is crucial for debugging complex applications.
• Performance Metrics: Real-time visualizations of performance metrics such as memory usage, CPU load, and execution time can pinpoint bottlenecks and inefficiencies, guiding developers in optimizing their code.

Network and System Diagrams

• Network Topologies: Visualizing network topologies helps in understanding the layout and connections of networked systems, which is essential for monitoring and troubleshooting network issues.
• Data Flows: Diagrams depicting data flows within a system can illustrate how data is processed and transferred between different components, aiding in the analysis and optimization of data processing pipelines.
• Communication Patterns: Visualizations of communication patterns between services or microservices can highlight potential bottlenecks and points of failure, helping to improve system reliability and performance.

A network monitoring application visualizing the connections of networked systems and status.

Project Management and Documentation

• Task Dependencies: Visualizing task dependencies in a project management context can help teams understand the sequence of tasks, identify critical paths, and allocate resources more effectively.
• Timelines: Project timelines with visual markers for milestones and deadlines can provide a clear overview of project progress, helping teams stay on track.
• Progress Tracking: Visual tools for tracking progress on individual tasks or features can increase transparency and accountability, facilitating better project management and collaboration.

Education and Training

• Interactive Tutorials: Visualizations in interactive tutorials can make learning programming concepts more engaging and accessible, helping beginners grasp complex ideas through visual aids.
• Real-time Code Feedback: Tools that provide real-time feedback on code changes with visual representations can accelerate the learning process by allowing learners to see the immediate impact of their code modifications.

Techniques for Effective JavaScript Code Visualization

Creating effective visualizations involves combining good design practices with technical expertise. Here are some key techniques to ensure your visualizations are both informative and engaging:

Using Visual Metaphors

Representing data through visual metaphors like graphs, charts, and diagrams simplifies the interpretation of complex information. Visual metaphors such as trees, networks, and timelines effectively convey structural and temporal relationships, making it easier for users to understand the data's context and significance.

Real-Time Visualization Techniques

Employing real-time visualization tools can provide immediate feedback on code execution, helping developers understand the impact of changes instantly. Real-time visualizations are particularly useful for debugging and performance tuning, as they allow for dynamic tracking of code behavior and performance metrics.

Interactive vs. Static Visualizations

Deciding between interactive and static visualizations depends on your specific needs:

• Interactive Visualizations allow users to explore data dynamically, enabling detailed examination and manipulation. These tools help users drill down into details, facilitating a deeper understanding of the data.
• Static Visualizations are useful for presenting information clearly and concisely at a high level. They provide an overview without the need for interaction, which can be ideal for reports and presentations.

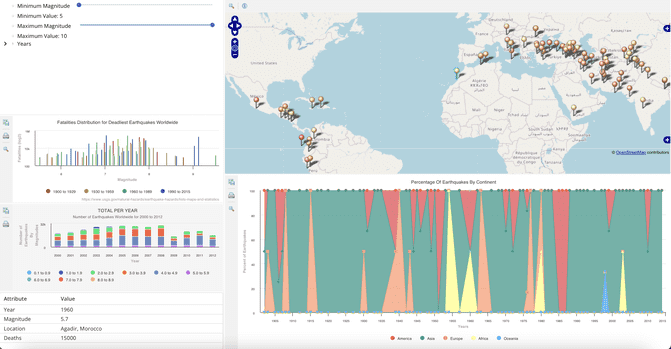

An example of effective visualization of an earthquake dataset.

Best Practices for Effective JavaScript Code Visualizations

Creating effective JavaScript code visualizations involves adhering to a set of best practices that ensure your visualizations are both informative and user-friendly. Here are the key principles to follow:

• Keep Visualizations Simple and Focused:
  • Avoid clutter and extraneous details.
  • Ensure the visualization communicates the intended message clearly.
  • Focus on the key data points and relevant information.
• Ensure Clarity and Readability:
  • Use appropriate colors, labels, and legends to make the visualization easy to understand.
  • Opt for high-contrast colors and clear, readable fonts.
  • Arrange elements logically to guide the viewer's understanding.
• Use Consistent Visual Styles and Color Schemes:
  • Maintain uniform design elements across different visualizations.
  • Consistency in visual styles and color schemes helps users quickly grasp the information.
  • Standardize visual components to reduce cognitive load.
• Incorporate User Feedback:
  • Regularly update and improve visualizations based on user feedback.
  • Engage with users to understand their needs and preferences.
  • Iterate on feedback to enhance usability and effectiveness.

Challenges and Solutions in JavaScript Code Visualization

Despite its many benefits, JavaScript code visualization comes with its own set of challenges. By addressing these challenges with thoughtful strategies, developers can harness the full potential of JavaScript code visualization, creating tools that enhance understanding, improve productivity, and scale with their projects.

Challenges of JavaScript Code Visualizations

1. Performance Issues
   1. Visualizing large datasets or complex code can be resource-intensive and can significantly slow down the development environment. High processing demands can make real-time visualization impractical, leading to delays and inefficiencies.
2. Complexity
   1. Creating meaningful visualizations for complex codebases is inherently challenging. The visual representation must accurately reflect the code's logic and structure without becoming overwhelming or confusing. As codebases grow, maintaining clarity and comprehensibility in visualizations becomes more difficult.
3. Scalability
   1. Another major challenge is ensuring that visualizations remain effective as projects grow in size and complexity. Visualizations that work well with small datasets or simple applications may not scale effectively to handle larger, more complex data.

Effective Strategies for Overcoming JS Code Visualization Challenges

1. Performance Optimization
   1. To address performance issues, optimize your code and use efficient algorithms to reduce the computational load. Techniques such as lazy loading and asynchronous processing can help manage large datasets more efficiently, ensuring that visualizations remain responsive and performant even with extensive data.
2. Managing Complexity
   1. To manage complexity, break down complex code into smaller, more manageable components and visualize each part separately. Modular visualizations can then be combined to form a comprehensive view of the code. This approach helps maintain clarity and makes it easier to understand and manage the visualizations as the codebase evolves.
3. Ensuring Scalability
   1. Design scalable visualization tools that can handle increasing data volumes and complexity. Regularly update visualizations to adapt to changes in the codebase, ensuring they remain relevant and effective. By planning for scalability from the outset, you can create visualizations that grow alongside your projects, maintaining their utility and clarity.

Real-world Applications of JavaScript Code Visualization

JavaScript code visualization is employed across various industries, each leveraging it to address specific challenges and requirements.

Data Science

In the field of data science, visualizing complex datasets is crucial for uncovering patterns and insights. JavaScript code visualization tools enable data scientists to create interactive dashboards and perform real-time data analytics, allowing users to explore data visually and derive actionable insights.

Web Development

Web development benefits significantly from JavaScript code visualization, particularly in enhancing user interfaces and user experiences. Dynamic visualizations can provide real-time feedback, improving functionalities such as form validation and interactive maps. These visualizations make web applications more engaging and user-friendly.

Cybersecurity

In cybersecurity, visualizing network activity and security threats is essential for monitoring and responding to potential issues. Visualization tools can display real-time threat analysis, network traffic, and intrusion detection data, aiding security teams in effectively tracking and addressing security concerns.

Education

Educational tools and platforms utilize JavaScript code visualization to teach programming through visual aids. These tools often include interactive tutorials and real-time code feedback, making learning to code more engaging and accessible for beginners. Visualization helps break down complex programming concepts into more understandable visual formats, enhancing the learning experience.

Final Thoughts

JavaScript code visualization is an indispensable aspect of modern programming, offering a wealth of benefits from improved code comprehension to enhanced debugging and productivity. By leveraging the right tools and techniques, developers can transform complex code into intuitive visual representations, making programming more accessible and efficient. As the field continues to evolve, staying updated with the latest trends and tools will be crucial for harnessing the full potential of JavaScript code visualization.
