Dot Graph Visualization: From Static Diagrams to Interactive Systems

Dot Graph Visualization is a method for illustrating complex systems using the DOT language—a lightweight, plain-text format purpose-built for graph descriptions.

This static approach works well in scenarios where clarity and precision are essential. However, as modern systems grow in scale and complexity and real-time insights become increasingly important, traditional DOT-based visualizations often fall short. Today’s organizations need more than static images—they require interactive, scalable graph environments that can evolve alongside their data.

In this article, we’ll take a closer look at Dot Graph Visualization, highlight its advantages and limitations, and explore how modern platforms like Tom Sawyer Perspectives enable organizations to move beyond static diagrams to dynamic, schema-aware visualizations designed for today’s complex systems.

An example DOT Graph visualization of a simple process.

What Is a Dot Graph Visualization?

A Dot Graph models systems as a network of nodes and edges, defined using the DOT language. It's a straightforward way to represent relationships, dependencies, and process flows. Common use cases include mapping CI/CD pipelines, visualizing class dependencies, and documenting network structures—all with minimal overhead.

Though inherently static, dot graphs remain a popular choice in environments where simplicity and automation are essential.

The DOT Language and Format

The DOT language is a plain-text syntax for graph definition, making it both human-readable and easily parsed by machines. This simplicity is why DOT has become a go-to solution for creating static visualizations across engineering and IT workflows.

Here’s a minimal DOT example for a directed graph:

digraph ExampleGraph {

  A -> B;

  B -> C;

  C -> A;

}

In this case:

• A digraph defines a directed graph, where connections (edges) have a specific direction.
• Statements like A -> B define edges between nodes.

DOT’s flexibility is one of its strengths. It supports labeled nodes and edges, visual customization (including colors, fonts, and shapes), subgraphs for grouping, and layout instructions such as rank constraints. This makes it ideal for use in documentation and configuration and as machine-generated output from systems such as build tools or dependency analyzers.

Still, it's worth noting: DOT graphs are static. They define what the graph looks like, not how it behaves or updates in dynamic environments.

Basic Components: Nodes, Edges, and Graph Types

Nodes

Nodes represent entities, like components, systems, or steps in a process. They can be defined:

• Implicitly, by mentioning them in an edge
• Explicitly, with attributes such as:

A [label="Start Node", shape=ellipse, color=blue];

This allows for customization of labels, shapes (e.g., boxes, diamonds, ellipses), and styles.

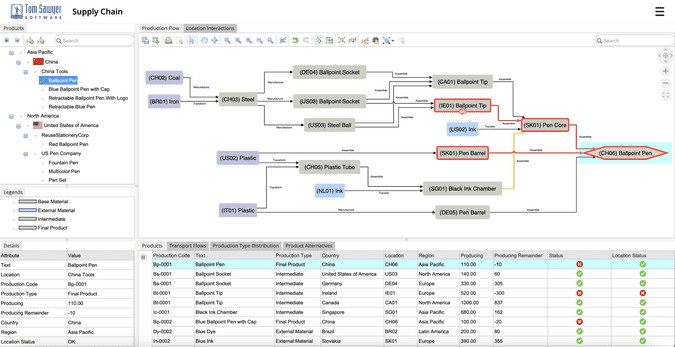

A supply chain graph visualization of components in a ballpoint pen produced with Tom Sawyer Perspectives.

Edges

Edges represent the relationships between nodes. They come in two forms:

• Directed: A -> B shows flow or dependency
• Undirected: A -- B indicates a mutual or non-directional connection

Edges can also be customized with labels (label="triggers"), color, weight, and more, helping to convey meaning visually beyond simple connectivity.

Graph Types

The DOT language supports:

• Directed graphs (digraphs) – where edge direction matters
• Undirected graphs (graph) – where it doesn't

The choice depends on the nature of the relationships you're modeling.

Subgraphs and Clusters

For grouping nodes into logical units, DOT supports subgraphs, which can also be styled as clusters for visual emphasis. For example:

subgraph cluster_0 {

  label = "Module A";

  style = filled;

  color = lightgrey;

  A1 -> A2;

}

This structure is helpful in representing modular systems, domains, or organizational hierarchies within a larger system graph.

Dot Graph Visualization: Use Cases and Limitations

Strengths of the DOT Model

DOT’s greatest strength lies in its simplicity. The syntax is minimal, human-readable, and quick to write—even by hand. This makes it particularly useful for generating diagrams on the fly or as part of automated development workflows. In many environments, particularly in software engineering, teams utilize DOT to output graphs directly from tools such as compilers, static analyzers, or build orchestrators.

Another key advantage is that DOT integrates seamlessly into CI/CD pipelines and version-controlled codebases. Since DOT is just text, it fits naturally alongside configuration files, scripts, and code. It’s easily diffable, scriptable, and lends itself to templating.

DOT is often more than enough for static documentation. When the goal is to capture a specific system state, architecture map, or flow diagram—especially at a smaller scale—DOT delivers fast, precise results. DOT-compatible tools produce clean layouts with minimal effort, making them ideal for internal diagrams, technical specifications, and process charts where interactivity isn’t required.

DOT thrives in scenarios where simplicity, speed, and clarity are the top priorities. It works exceptionally well for small to moderately complex graphs where relationships are fixed and not expected to change in real time. In these cases, the goal is usually to create a visual representation for documentation, explanation, or internal reference, rather than for interactive exploration. DOT’s ability to quickly generate clean diagrams and its ease of integration into automated workflows and CI/CD pipelines make it a practical choice in engineering environments focused on fast iteration and static system representation.

Limitations in Complex Environments

As helpful as DOT is, its limitations become apparent as systems grow more dynamic, layered, and data-rich.

First and foremost, DOT has no concept of interactivity. You can’t click on a node to see more detail, filter by category, or explore the structure beyond what’s already rendered. This can be a deal-breaker for users accustomed to modern dashboards and graph UIs. It turns the graph into a static artifact rather than a tool for exploration and analysis.

There’s also no notion of time in DOT. You can’t represent events that unfold across a timeline, changes in state, or evolving metrics. This makes DOT unsuitable for monitoring systems, simulation environments, or any use case where the graph must reflect real-time behavior.

Semantics is another weakness. In DOT, all nodes and edges are essentially equal unless explicitly styled. There’s no built-in schema to enforce rules or meaning—only visual structure. That might be fine for simple diagrams, but in more complex systems, the lack of typed elements, data validation, or business logic limits what DOT can express.

Scalability is another key limitation. As the number of nodes and edges increases, DOT-based layouts can become visually overwhelming and hard to interpret. With no built-in clustering, limited layering logic, and minimal layout control, the resulting graph often turns into a tangled web, hiding insights instead of highlighting them.

As systems continue to evolve, modern environments increasingly demand advanced visualization tools. Real-time updates, user-driven exploration, dynamic filtering, and scalable layouts are no longer nice-to-haves—they're expected features. DOT, being inherently static and presentation-focused, simply can’t meet these needs.

At this point, teams often find themselves needing to move beyond DOT-based diagrams and adopt more advanced solutions—platforms that support interactive graph exploration, semantic modeling, and live data integration throughout the system's full lifecycle.

Real-World Engineering Applications of Dot Graph Visualization

Visualizing CI/CD Dependencies with DOT

In software delivery workflows, understanding dependencies between tasks, services, or packages is crucial. Tools like Bazel, Gradle, and CMake often export their internal dependency graphs in DOT format, providing developers with a clear overview of how components relate to one another. These graphs can reveal circular dependencies, build bottlenecks, or unexpected module couplings. Because DOT files are easy to generate and render using Graphviz, they remain a go-to solution for representing task order and dependency chains in continuous integration and deployment pipelines.

State machines are used extensively in frontend interfaces, protocol handlers, embedded systems, and robotics. DOT graphs offer a concise way to represent states as nodes and transitions as directed edges. Each transition can be labeled with the event or condition that triggers it, making the logic behind the system immediately clear. Tools like PlantUML and XState Inspector can even generate DOT files programmatically. While these graphs are static, they serve as adequate visual documentation of system behavior, especially useful during debugging or for communicating logic between teams.

Static System and Software Architecture Diagrams

DOT is often used to define and render static architecture overviews for small to mid-sized systems. These include class hierarchies, microservice interaction maps, data flow diagrams, and network topologies. Many engineers hand-write DOT files to describe how services interact or how components are layered within a deployment model. This approach works well when the architecture is relatively stable and the primary need is to communicate structure rather than analyze live metrics or runtime states.

Representing Control and Data Flows in Engineering

DOT graphs are frequently used in compiler design, program analysis, or data processing pipelines to represent control flow and data flow. These include visualizations of intermediate representations (IR), abstract syntax trees (ASTs), or optimization passes. Because such graphs are often tree-like or acyclic, DOT's layout engines can produce clear, hierarchical visuals that aid in understanding how code is transformed or executed. DOT is a lightweight and reliable option for debugging complex pipelines or analyzing transformation logic.

Modeling Time and Resource Flows with Graphs

What Is a Time Graph?

A time graph represents how entities and their relationships evolve over time. Unlike traditional static graphs, which depict a single snapshot of connectivity, time graphs capture temporal dynamics—changes in node states, edge activations, or graph topology over intervals or discrete events.

For example, in a network monitoring context, a time graph might illustrate how connections between servers fluctuate during peak load or how data packets traverse a path over time. In cybersecurity, it might represent the sequence of actions taken by a potential threat actor across multiple systems.

Time graphs are particularly valuable when analyzing systems where change over time is a central component. They are often used to examine sequences of events, such as user behavior patterns or system log activity, where the order of operations carries meaning. Additionally, they help visualize state transitions, like the progression through lifecycle phases in a process. Perhaps most importantly, time graphs reveal temporal causality, allowing analysts to trace how one event leads to another, forming a chain of influence or escalation. These use cases emphasize not just structure, but the rhythm and evolution of data over time.

In such cases, the order and timing of relationships are as important as the structure itself. Visualization tools must account not just for who is connected to whom, but when, for how long, and in what sequence.

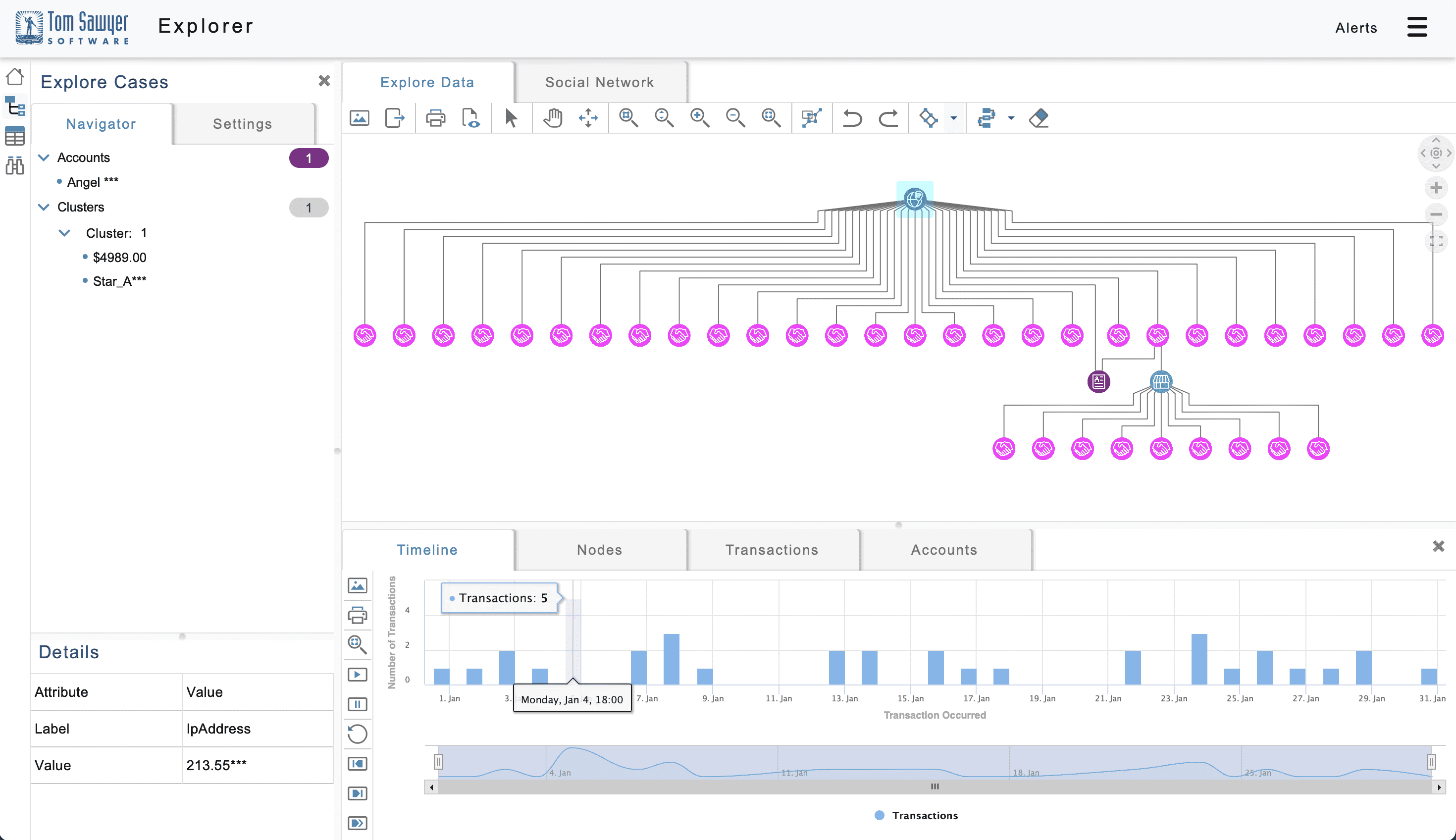

A graph visualization showing a timeline of financial transactions produced with Tom Sawyer Perspectives.

What Is a Consumption Graph?

A consumption graph models the flow and usage of resources across a network of entities. These visualizations are especially valuable in domains such as energy, manufacturing, cloud infrastructure, or telecommunications, where it’s crucial to understand not only connections but also who is using what, how much, and when.

In a utility grid, for instance, nodes might represent substations, and edges would show the distribution of electricity. Each edge could carry quantitative values, such as energy drawn, load demand, or latency. In cloud monitoring, a consumption graph could display CPU or memory usage across microservices, helping engineers identify bottlenecks or imbalances.

These graphs typically evolve over time, making them both temporal and metric-driven. Unlike basic graphs, where connections are binary (connected or not), consumption graphs are weighted, and these weights change in real-time or across time slices.

To effectively visualize consumption data, the graph must go beyond static representations and reflect change, intensity, and focus. Animated or time-stepped updates help users observe how usage patterns evolve, revealing spikes, drops, or gradual trends. Visual encoding—such as color gradients or node sizing—can communicate the magnitude of consumption at a glance. Filtering capabilities are equally important, enabling analysts to isolate high-usage paths or investigate anomalies without being distracted by less relevant information. Together, these techniques turn consumption graphs into analytical tools rather than just illustrations.

An example graph visualization produced with Tom Sawyer Perspectives showing clusters, load and capacity of a network of microwave antennas.

Why DOT Falls Short for Temporal and Dynamic Graphs

While DOT excels at defining static structures, it lacks the expressive power needed to model or visualize temporal or metric-based behavior. There’s no built-in way to represent time, animate state changes, or update relationships without rewriting and re-rendering the entire graph.

DOT graphs are inherently declarative: They describe what the graph looks like at a specific moment, not how it evolves. They don’t support incremental updates, live data bindings, or user interaction, which limits their use in modern applications where interactivity, reactivity, and performance monitoring are critical.

Trying to force dynamic behavior into a DOT file—by scripting multiple states or generating one graph per time slice—quickly becomes unmanageable. As systems scale and data complexity increases, DOT becomes more of a bottleneck than a solution.

This is where modern, schema-aware graph platforms come into play. They’re built to handle time, metrics, and interactivity as first-class citizens, not as afterthoughts.

From Static Diagrams to Interactive Graph Platforms

Importing and Enriching DOT Graphs

Many engineering teams begin their visualization journey with the DOT format because it’s accessible, easy to automate, and integrates well with developer workflows. However, as systems scale and data become more dynamic, DOT files transition from being a complete solution to merely a starting point.

Modern graph platforms can import DOT files directly, preserving structural definitions while layering on additional capabilities. What starts as a static system diagram can be enriched with live data streams, metadata, conditional styling, and real-time interactivity. This evolution enables teams to maintain their existing processes while extending the value of those visuals far beyond documentation.

Schema-Aware Modeling for Meaningful Graphs

In DOT, all nodes and edges are effectively equal, unless manually styled. This limits the ability to model domain-specific logic or enforce structural rules. In contrast, schema-aware platforms introduce meaning directly into the graph model by defining entity types, valid relationships, and constraints.

This enables smarter visualization and richer analysis. For example, servers can be distinguished from databases, communication lines can carry specific protocols or metrics, and alerts can propagate based on predefined dependencies. Visual elements respond to underlying logic: nodes can change color based on their state, edges can vary in width according to load, and substructures can be validated against schema rules.

Interactive Graph Features Beyond Static Layouts

While DOT supports several layout types, such as hierarchical or force-directed, static renderings quickly reach their limits with dense or deeply nested data. Interactive visualization platforms take it a step further, offering advanced layout algorithms alongside UI behaviors that facilitate exploration.

Features such as semantic zooming (which adjusts detail based on the zoom level), contextual tooltips, search, on-demand filtering, and click-to-expand node clusters transform the graph into a functional user interface. Instead of reading a diagram, users interact with a live, meaningful system model, which reveals structure, uncovers anomalies, and accelerates understanding.

Integrating Real-Time Data into Graph Visualizations

Static tools require manual updates each time the underlying data changes. This approach quickly becomes unsustainable in fast-moving environments, such as cybersecurity, logistics, infrastructure, or finance.

Modern graph visualization platforms overcome this limitation by connecting directly to live data sources, including APIs, telemetry feeds, event streams, and databases. As the data changes, the graph updates automatically, providing users with an accurate, real-time view of the system, without the need to regenerate static visuals.

This transforms the graph from a static snapshot into a live, interactive window into system behavior, enabling proactive monitoring, faster diagnostics, and more informed decision-making.

Real-World Examples: Scaling Beyond DOT

Infrastructure Systems That Evolve in Real Time

Many IT and operations teams start with static DOT diagrams to map services, databases, or virtual machines. While these visuals help document early-stage architecture, they become obsolete the moment the infrastructure changes—when new services are deployed, nodes are reallocated, or configurations shift dynamically.

With an interactive platform, infrastructure maps are automatically updated. Data is pulled directly from orchestration tools, monitoring systems, or Configuration Management Databases (CMDBs). Engineers can trace dependencies, pinpoint vulnerabilities, and analyze system health—all from a real-time visualization that reflects the current state, not a snapshot from last week.

Cybersecurity Graphs That Respond to Threats

In cybersecurity, timing and context are everything. Static DOT graphs can display network layouts or log connections, but they cannot capture evolving attack vectors, suspicious behaviors, or real-time threat propagation.

Interactive graph systems offer a much-needed upgrade. Security teams can visualize endpoint events, monitor user behavior, and track alerts as they occur. Anomalous nodes can be highlighted based on severity scores; communication paths can be traced chronologically. This level of interactivity enables analysts to identify patterns, isolate incidents, and respond more effectively—something that no static image can support.

Real-Time Digital Twins in Operations and Engineering

Digital twins have become crucial for enhancing operational visibility in fields such as manufacturing, logistics, and asset management. DOT can be used to model system components during the design phase; however, static diagrams are insufficient once the system goes live.

With real-time visualization platforms, digital twins become interactive, data-rich interfaces. Graphs display telemetry data from physical assets, including temperature, pressure, position, and load status. Engineers can monitor conditions, simulate what-if scenarios, and respond to changes as they happen. Instead of static blueprints, they’re working with live mirrors of real-world systems.

Knowledge Graphs That Scale with Complexity

Organizations increasingly rely on large-scale knowledge graphs—whether for semantic search, enterprise data management, or AI modeling. These graphs often involve tens of thousands of entities and relationships, with deeply nested hierarchies and complex metadata.

DOT simply wasn’t built to handle this scale or depth. Graph layout becomes unreadable, and manual styling becomes unmanageable.

Modern platforms address this by supporting layered views, on-demand clustering, and dynamic filtering. Analysts can explore relationships at different levels of abstraction, toggle between semantic layers, and run contextual queries, whether mapping research concepts, customer journeys, or organizational structures. Interactive graph systems offer a navigable interface for data exploration at scale.

When to Move Beyond Static Graphs

Signs You've Outgrown Static Diagram Tools

Every graph visualization tool has its limits—limits that often remain hidden until your system complexity begins to push against them. What once started as a lightweight solution for illustrating relationships can quickly become a bottleneck as data scales, structures evolve, and stakeholder needs grow more advanced.

You may notice that diagrams that were once clear and easy to generate now take longer to render and are harder to interpret. Layouts become dense, tangled, and disconnected from the underlying logic they’re meant to reflect.

Another signal is the growing disconnect between your data and the visuals that represent it. Static graphs require regeneration every time the data changes—a process that’s neither sustainable nor scalable in fast-moving environments. When users begin asking for features like filtering, tooltips, search, or drilldowns, it’s a clear indication that a static rendering is no longer meeting expectations.

At that point, you’re no longer creating diagrams just for documentation—you’re trying to deliver real-time insight, contextual understanding, and a tool for decision support. And static graph tools simply weren’t built for that.

Key Questions to Ask Before Scaling

Before making the leap to a more dynamic, interactive graph platform, it's helpful to evaluate your current needs against a few strategic criteria:

• Do users need to explore the graph, or just view it?
• Is the underlying data static, or does it evolve frequently in structure or content?
• Are your diagrams already out of sync with the system they’re meant to represent?
• Is there a growing need for filtering, search, or role-based views?
• Are you spending time maintaining both the graph visuals and the data model separately?

If you answered “yes” to even one of these, your current tooling has likely reached its limits.

Modern systems require visualization platforms that are not only expressive but also adaptive, capable of integrating live data, enforcing schema logic, and supporting user interactivity at scale. Moving beyond static diagrams isn't about aesthetics—it's about unlocking deeper insight and accelerating informed action.

Final Thoughts: Graphs Are Just the Beginning

Graph data is no longer just a way to document structure—it’s become a strategic asset. As systems grow more interconnected and dynamic, the way we visualize and explore relationships must evolve accordingly. What begins as a simple diagram in DOT often needs to mature into a real-time, interactive environment that supports deep analysis, live feedback, and operational insight.

Interactive graph visualization isn’t just about making data look better—it’s about making it usable. It helps teams move faster, spot problems sooner, and make decisions grounded in context rather than guesswork. For organizations that rely on understanding complexity—whether in infrastructure, software, finance, engineering, or research—this capability is no longer optional.

Tom Sawyer Software makes it possible to bridge the gap between what your system is and what it means. With powerful layout engines, schema-driven modeling, and seamless integration with live data, the platform enables you to turn static diagrams into interactive systems of understanding.

For teams ready to scale beyond scripts and snapshots—those eager to empower users with exploration, not just observation—Tom Sawyer Perspectives provides the performance, flexibility, and intelligence to meet the moment.
