Gene Ontology Graph Visualization: Uncovering Biological Insights Through Graphs

The growth of biological data in genomics and proteomics has introduced both opportunity and complexity. Researchers increasingly rely on structured vocabularies—ontologies—to describe gene functions in a consistent, interoperable way.

But as datasets expand, so does the difficulty of interpreting layered, interdependent relationships. Tabular or linear formats often obscure the true structure of biological meaning. Visualization becomes essential when the goal is to explore not just isolated terms, but how they connect and form functional systems.

This article explores how ontology graph visualization reveals structure within biological data, why it is critical for discovery in life sciences, and how technologies like Tom Sawyer Perspectives support its application in research and industry.

What Is Gene Ontology Graph Visualization?

Gene Ontology graph visualization refers to the process of representing the Gene Ontology—a structured vocabulary of gene functions—as an interactive graph composed of nodes and edges. This approach reveals the meaning, hierarchy, and context of biological terms in a way that traditional formats cannot.

In biology, one of the most impactful and widely adopted ontologies is the Gene Ontology (GO). It provides a standardized vocabulary for describing gene and protein functions across species, organized into three primary categories: biological processes, molecular functions, and cellular components. These categories are interrelated, and GO terms often overlap or belong to multiple parent concepts, making the structure a directed acyclic graph (DAG) rather than a simple hierarchy.

Each GO term represents a distinct biological concept. For example, a gene product might be involved in "signal transduction" (a biological process), possess "kinase activity" (a molecular function), and be located in the "cytoplasm" (a cellular component). These associations are defined through semantic relationships like “is_a” and “part_of,” and together form a complex, multidimensional network.

Visualizing this ontology as a graph makes its structure intelligible. Nodes represent terms, and edges define the nature of the relationships between them. This approach supports not only human interpretation but also computational reasoning, allowing algorithms to identify clusters, detect enrichment, and reveal patterns in how genes are functionally related.

When applied to large datasets, ontology graph visualization becomes a powerful analytical tool. It enables researchers to trace gene functions, explore biological pathways, and detect hidden connections across systems that are otherwise too complex to understand at a glance. Instead of reading through disconnected annotations, scientists can interact with a structured, visual map of gene function, turning abstract semantics into concrete insight.

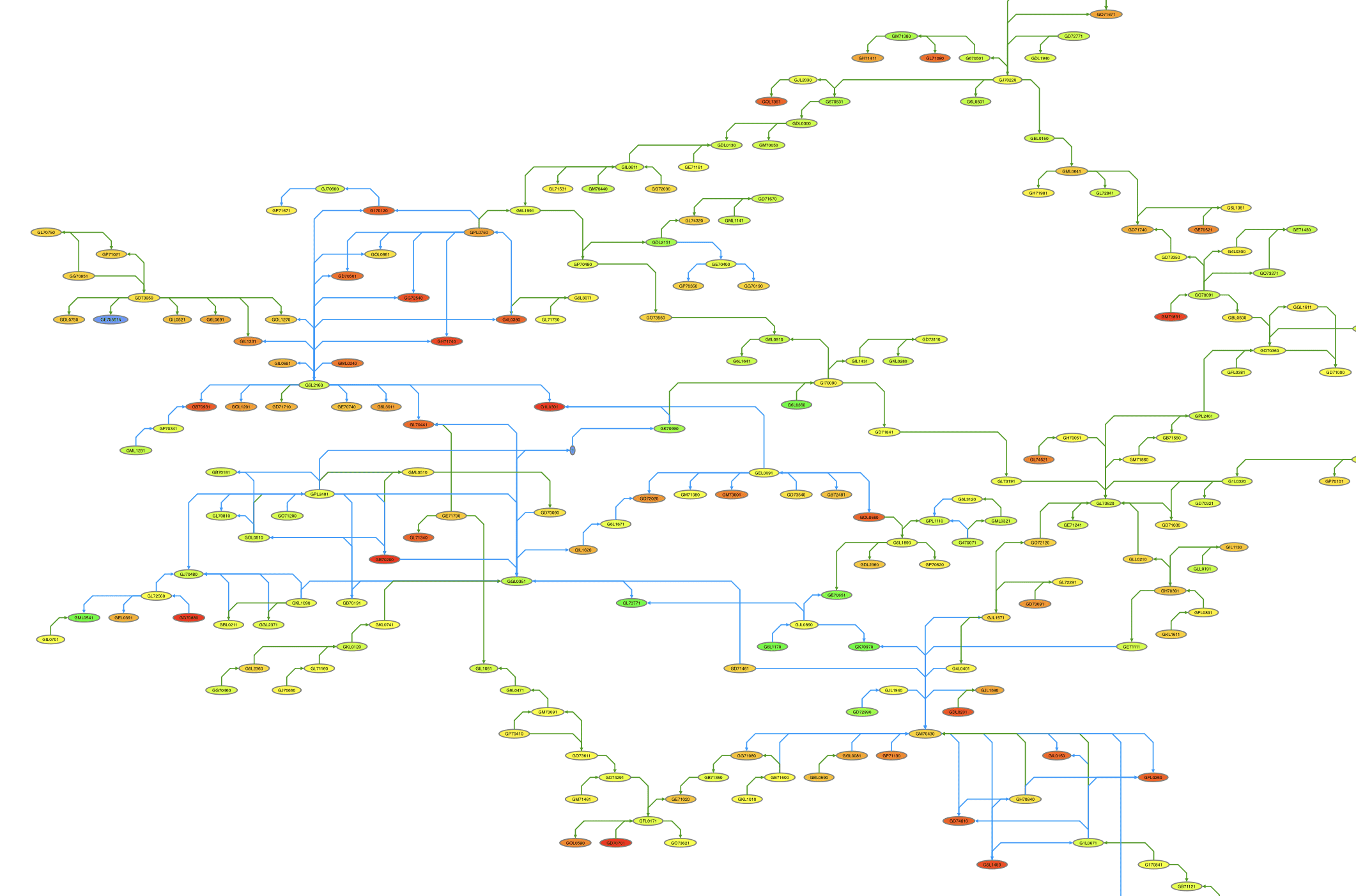

A bundle layout graph visualization of different gene expressions and their relationships.

Why Graphs Are Ideal for Representing Gene Ontologies

Hierarchical Relationships and Directed Acyclic Graphs (DAGs)

Gene Ontology is organized not as a simple hierarchy, but as a directed acyclic graph. This structure reflects the reality that biological categories often overlap. A GO term can belong to multiple higher-level categories, inheriting traits from each. This is fundamentally different from tree structures, where each node has only one parent, making the ontology more flexible and more complex to interpret without a graph.

The DAG model preserves this richness. It captures relationships that are inherently many-to-many and allows paths to be traced through multiple semantic layers. In doing so, it respects the biology rather than imposing artificial constraints on it.

From Ontologies to Graph Structures: Nodes and Edges Explained

In a graph representation, each ontology term becomes a node. Connections between them, edges, carry meaning. The most common relationships are “is_a” and “part_of”, but other edge types exist as well. These relationships define the biological logic of how terms relate, and visualizing them is not just about showing links, but about communicating meaning.

Edge types should be visually distinct because they represent fundamentally different semantic connections. For example, an “is_a” relationship implies a subclass, whereas “part_of” denotes physical or functional containment. Accurate interpretation depends on preserving this distinction in any visual output.

Graph structures also enable better interaction with the ontology. Through navigation, filtering, and dynamic layout, users can focus on specific areas of interest while maintaining a sense of the global structure.

Tools and Technologies for GO Graph Visualization

Cytoscape and Other Open-Source Tools

Cytoscape is often used for biological network visualization. It supports the import of GO annotations and allows users to visualize them in conjunction with other biological networks. Cytoscape’s plugin ecosystem includes tools specifically designed for GO term enrichment and layout optimization. While accessible and versatile, its scalability can be a limitation in projects that involve thousands of terms or dynamic filtering.

Several other open-source libraries—such as BioJS, Gephi, and Graphviz—have been used in academic contexts to visualize ontology data. Each has its own strengths: some offer better rendering performance, others more control over styling or interactivity. However, most require manual setup and lack built-in awareness of GO-specific semantics.

Integrating with Graph Libraries

Graph libraries offer developers building custom pipelines a programmatic way to analyze and display ontology data. Python’s NetworkX allows users to construct graphs from OBO or OWL files and apply a wide variety of layout algorithms. Neo4j, a graph database, can store GO terms and relationships with explicit typing and indexing, making complex queries efficient.

These tools enable integration with broader workflows, such as automated annotation systems, machine learning pipelines, or genome-wide association studies. However, using them effectively often requires writing code to translate GO relationships into data structures compatible with the library.

Where Tom Sawyer Perspectives Fits In

Tom Sawyer Perspectives is built for environments where biological complexity meets technical scale. Unlike general-purpose or academic tools, it is designed to handle densely connected, semantically rich data structures, such as those found in gene ontologies, with a focus on clarity, control, and performance.

Its layout engines support hierarchical and radial visualizations that preserve semantic depth while remaining readable, even as the number of terms and relationships grows into the thousands. These layouts are particularly valuable when working with GO structures, where parent-child hierarchies and cross-category links can quickly overwhelm basic renderers.

What sets Tom Sawyer Perspectives apart is its ability to combine advanced layout with semantic filtering, hierarchical abstraction, and real-time interactivity. Users can collapse or expand regions of the graph, filter by relationship type or term category, and navigate seamlessly between different layers of the ontology—all without losing context.

These capabilities are not isolated; they are designed for integration into enterprise-grade platforms. Organizations working in bioinformatics, biotechnology, or clinical research can embed Tom Sawyer Perspectives into larger data ecosystems, connecting gene ontology graph visualizations to live annotation pipelines, query interfaces, or analytical dashboards.

For teams that require both precision and scalability, Tom Sawyer Perspectives bridges the gap between ontology structure and visual insight. It transforms complex semantic models into usable interfaces—where structure is not just shown, but understood and acted upon.

A graph of the spread of Coronavirus across a network of people produced with Tom Sawyer Perspectives.

Step-by-Step: Visualizing Gene Ontology with Graph Tools

Loading and Parsing GO Data

The first step in building a graph from gene ontology data is obtaining the ontology itself. The Gene Ontology Consortium provides data in multiple formats, the most common being OBO and OWL for the ontology structure, and GAF for annotations. OBO files define the terms, their IDs, and relationships, while GAF files link specific genes to ontology terms across organisms.

Parsing these files requires tools that can interpret the structure and semantics. Libraries such as goatools in Python provide utility functions to read OBO and GAF files and represent them in memory as directed graphs. This parsed structure becomes the foundation for any downstream visualization or analysis.

Structuring the Ontology into a Navigable Graph

Once the data is parsed, the ontology terms are transformed into nodes, and their relationships into directed edges. Each node is typically labeled with its GO ID and a human-readable name. Edges are labeled based on the type of relationship they represent, which is essential for correct interpretation.

A graph layout begins to take shape when these nodes and edges are assembled into a structure that allows traversal. Depth, parent-child dependencies, and cross-links must all be preserved to reflect the ontology accurately. This structure enables exploration from a high-level root term down to the most specific biological functions.

In many cases, additional metadata is attached to nodes, such as the number of gene annotations or literature references, which can later inform styling, filtering, or weighting during visualization.

Styling, Layout, and Filtering Techniques

The raw structure of a gene ontology graph is rarely user-friendly without a thoughtful layout. Ontologies often contain hundreds or thousands of interconnected terms. Effective visual communication depends on the ability to manage this complexity.

Layout algorithms—such as layered, orthogonal, or radial—play a central role in organizing the graph into an interpretable form. A layered layout that reflects the depth of the DAG, placing broad terms at the top and specific functions deeper down, often benefits semantic clarity.

Styling is equally important. Nodes can be colored by ontology category or annotation frequency, and edges can be styled differently based on their semantic type. Interactivity, such as collapsing branches or filtering by term ID, helps users focus on areas of interest without losing sight of the broader structure.

When these elements are thoughtfully applied, the graph becomes not just a visual object, but an interactive map that guides biological discovery.

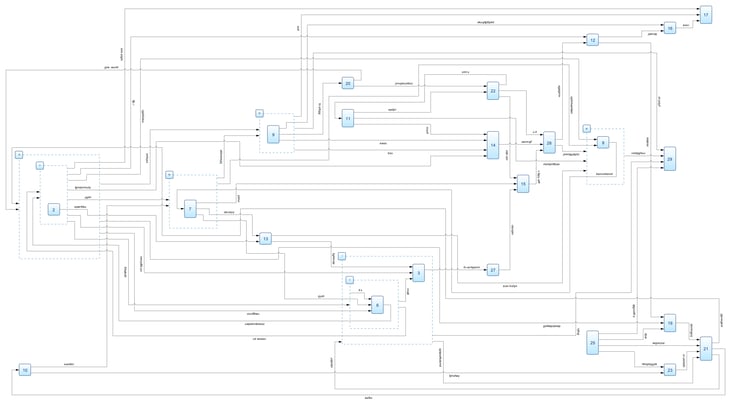

A hierarchical graph layout with orthogonal edge routing produced with Tom Sawyer Perspectives.

Real-World Use Cases in Life Sciences and Bioinformatics

Gene Function Prediction

One of the most common applications of gene ontology visualization is functional annotation of genes from new or poorly characterized genomes. Significant gene sets are identified and mapped to GO terms when researchers analyze high-throughput data, such as RNA sequencing or proteomics. Graph-based visualization helps detect convergence within specific biological processes or functions, especially when multiple genes point toward the same subnetwork of GO terms.

By observing these clusters visually, it becomes easier to formulate hypotheses about the likely role of unannotated genes. For example, if several known genes involved in cell signaling are functionally related to an uncharacterized gene through shared GO annotations, the graph structure may suggest that this gene also plays a role in signaling pathways.

Exploring Disease Associations

Disease-gene association studies often yield long lists of candidate genes. Mapping these genes onto GO graphs can highlight biological processes or cellular components that are overrepresented in a disease context. Visualization exposes which functional pathways are implicated and how different genes may contribute to the same disease phenotype through distinct biological mechanisms.

This is especially useful in complex disorders, where the biological explanation may not lie in one pathway but in the convergence of several related processes. Graph exploration enables cross-referencing between terms and reveals indirect links that may not be evident in raw statistical data.

Protein-Protein Interaction Networks

When GO annotations are applied to protein-protein interaction (PPI) networks, functional layers are added to purely structural data. Proteins in the same interaction module may share similar GO terms or may function in sequential biological steps. Overlaying GO-based graphs onto PPI networks enhances interpretation by indicating the biological rationale behind observed interactions.

In practice, this can support decisions in drug target selection, biomarker discovery, or pathway engineering. By combining topological structure with functional ontology, the resulting network becomes more than a map of connections—it becomes a framework for understanding how molecular interactions produce biological outcomes.

Challenges in GO Graph Visualization (And How to Overcome Them)

Scalability and Large Data Volumes

Gene ontology graphs can grow quickly in size and complexity, especially when representing annotations for entire genomes or large sets of experimental results. Depending on how many GO terms are involved and how deeply they are nested, these graphs are not unusual to contain several thousand nodes and even more edges.

Rendering and navigating such large graphs meaningfully requires careful architectural choices. At a technical level, layout performance becomes a limiting factor. On the user side, the challenge lies in presenting a graph that remains interpretable despite its size. One effective approach is to abstract different parts of the ontology into collapsible subgraphs, which allows users to work at both high-level and granular resolutions without losing context.

Navigating Complex Relationships

GO terms are often connected through multiple, overlapping semantic paths. This redundancy is biologically valid—it reflects the fact that many genes and functions participate in multiple systems—but it also creates visual clutter. Without filtering or prioritization, the result can be a graph so dense that patterns become impossible to detect.

Solving this requires intelligent handling of semantic weight. Not all relationships carry equal relevance in every context. By allowing users to filter by relationship type, annotation frequency, or species specificity, the visual graph becomes a lens rather than a mirror, emphasizing what matters for the task at hand, while de-emphasizing what does not.

Balancing Detail with Readability

A common challenge in ontology graph visualization is finding the right balance between completeness and clarity. Including all available information often results in unreadable diagrams. But reducing the graph too aggressively can lead to a loss of important relationships that could drive interpretation.

A more effective approach is selective detail expansion, revealing additional connections based on user interaction rather than displaying everything at once. This dynamic model works particularly well when paired with layout strategies that separate dense areas from sparse ones, making local clusters easier to read without disconnecting them from the global context.

Tools that support semantic zooming, focused traversal, or context-sensitive labeling help maintain this balance and make the graph usable across a range of biological questions and dataset sizes.

Best Practices for Visualizing Ontologies as Graphs

Choose the Right Layout for the Right Problem

The choice of graph layout has a direct effect on how well a user can interpret biological relationships. In ontology graphs, where hierarchy and semantic depth are critical, layered or hierarchical layouts tend to offer the clearest structure. These layouts emphasize parent-child dependencies by visually aligning terms according to their depth in the graph, which reflects how specific or general each term is within the ontology.

In situations where the primary goal is to uncover local clusters or find shortcuts between seemingly unrelated terms, force-directed layouts may be more appropriate. These layouts expose densely connected regions and emergent patterns that are not apparent in strictly hierarchical views. The right layout is not universal, it should reflect both the structure of the data and the nature of the user’s questions.

Use Color and Grouping to Clarify Categories

Visual consistency aids cognition, especially when dealing with information-dense graphs. Coloring nodes based on their ontology category—such as biological process, molecular function, or cellular component—helps users quickly identify functional groupings. When color is combined with shape or border style, even more semantic information can be conveyed without adding textual clutter.

Grouping nodes into visual clusters based on shared attributes or annotation metrics also improves interpretability. For example, genes annotated with a high degree of functional overlap can be visually grouped, even if they reside in different parts of the ontology. This makes it easier to spot convergence, redundancy, or functional modules within the graph.

Interactive Filtering and Highlighting

Static images are rarely sufficient for exploring GO graphs at scale. Interactivity enables the user to guide their own path through the data. Filtering options—by GO term, gene ID, species, or annotation confidence—allow researchers to reduce complexity based on what matters most in a given analysis. Highlighting, on the other hand, serves to bring immediate visual focus to relevant parts of the graph without removing context.

For instance, a user may want to highlight all terms associated with a particular experimental condition while still viewing how those terms relate to others. This selective emphasis supports discovery while preserving the broader structure of the ontology.

Interactivity transforms a graph from a static diagram into a working tool. It becomes not just a way to display knowledge, but a way to interact with it, test ideas, and refine understanding.

Final Thoughts: Bringing Structure to Biology Through Visualization

As biological data continues to expand in volume and complexity, the ability to understand that data visually becomes essential. Gene Ontology offers a powerful semantic framework, but its full value is realized only when it becomes navigable, transformed from a static taxonomy into a dynamic space for exploration.

Graph-based visualization enables that transformation. It turns structured data into interpretable, interactive, and actionable data. Researchers can trace how biological concepts are connected, discover relationships that aren’t immediately obvious, and communicate insights across disciplines and roles.

The use of ontology graph visualization is no longer a luxury for specialists. It is becoming a critical layer in the infrastructure of modern life sciences, where questions are complex, answers are relational, and understanding depends not just on data, but on the ability to see how that data fits together.

About the Author

Caroline Scharf, VP of Operations at Tom Sawyer Software, has 15 years experience with Tom Sawyer Software in the graph visualization and analysis space, and more than 25 years leadership experience at large and small software companies. She has a passion for process and policy in streamlining operations, a solution-oriented approach to problem solving, and is a strong advocate of continuous evaluation and improvement.

FAQ

Can gene ontology graphs be used without programming skills?

Yes, to some extent. Tools like Cytoscape allow users to load GO data and generate basic visualizations through a graphical interface. However, deeper customization, such as filtering by semantic relationships or integrating experimental datasets, often requires some scripting or plugin development. For researchers without a software background, working in collaboration with data analysts or developers can make the process more effective.

How can gene ontology visualization improve research outcomes?

Visualization helps transform abstract annotations into structural insights. It allows researchers to see how different genes connect through shared functions, where redundancies occur, and what patterns emerge across large datasets. In exploratory phases of a study, it supports hypothesis generation. In later stages, it aids interpretation and communication of results to broader teams or external stakeholders.

Are there best practices for updating or versioning GO graphs?

Yes. Gene Ontology is a living resource that evolves regularly. When using GO in analysis pipelines or visual dashboards, it's important to track which version of the ontology was used. This ensures reproducibility and helps interpret results in the context of changes over time. Some tools offer version control, while others require users to manually track and document their source files.

What’s the difference between 'is_a' and 'part_of' in GO graphs, and why does it matter in visualization?

The 'is_a' relationship represents a subclass connection—where one term is a more specific form of another—while 'part_of' describes compositional or spatial inclusion. Visually distinguishing these edge types is crucial because they imply different biological meanings. Misinterpreting them in a graph can lead to false conclusions about gene function or system structure.

Can GO graphs be integrated into enterprise-grade analytics platforms?

Yes. Ontology data can be embedded into larger systems using graph databases or APIs. Tom Sawyer Perspectives allow organizations to present GO relationships alongside clinical data, experimental results, or external ontologies with scalable, enterprise-grade applications. This integration supports real-time exploration, auditing, and reporting within a single interface.

What should I consider when sharing GO visualizations with collaborators or non-experts?

Clarity and context are key. Use labeling strategies that make terms understandable without requiring prior ontology knowledge. Include legends for edge types and node colors. If possible, provide interactive versions so collaborators can explore on their own terms rather than relying on static views.
