A Deep Dive into RDF Graph Visualization

What is RDF Graph Visualization?

RDF graph visualization is the process of transforming the abstract serialization structure of RDF data into a graphical form, where nodes represent entities (subjects and objects) and edges depict the relationships between these entities (predicates). This visualization is not merely a representation but a powerful tool for better data comprehension, exploration, and effective communication and interoperability. By converting RDF data into visual graphs, complex relationships become intuitive, making it easier for users to perceive connections, identify patterns, and derive insights.

The importance of RDF graph visualization extends beyond simple data representation. In applications ranging from academic research to business analytics, visualization plays a crucial role in:

• Enhancing comprehension: Users can more quickly understand complex structures and relationships within the data.
• Facilitating discovery: Visual patterns and anomalies that may not be evident in raw data formats become clearer, enabling more effective data mining and anomaly detection.
• Improving communication: Graphs can convey complex information in a straightforward manner, making it easier to share and explain data insights with both technical and non-technical stakeholders.

Applications of RDF Graph Visualization

RDF (Resource Description Framework) graph visualization is a powerful technique used across various domains to enhance the understanding and management of complex data sets. By visually representing RDF data, which is inherently structured as a graph, stakeholders can better comprehend relationships, discover patterns, and communicate insights effectively. Here are some key applications of RDF graph visualization:

1. Ontology Development and Meta-data Management: Ontologies help to describe the world in a form that is machine-interpretable, so that advanced logical computation can be used to infer new facts, validate the data that was provided for logical consistency, or prepare that data for use by other tools. Working with and viewing an ontology, even though it is an RDF data structure, is a specific task with its own requirements for visualizing and analyzing the structure of the meta-model. Good RDF visualizations for ontology development can help to manage large and complex ontologies, and provide insights about their structure, their logical consistency, and their common patterns.

   Ontologies are not all the same, and most of the time, an inheritance hierarchy tree is not enough to help people to understand them and apply them correctly. They can also be very complex, with many intersecting facets. The following example shows how two-dimensional swimlanes make it easier to understand complex ontologies with different namespaces and parallel class or attribute inheritence paths. This helps people make the right choices when using an ontology to describe their instance data.




   An example application using horizontal swimlanes to illustrate the split class and type definition inheritance paths present in an ontology derived from the Industrial Foundation Classes (IFC) modeling standards.
   Separate application domains within this standard are presented in the vertical swimlanes.

2. Semantic Web and Linked Data: One of the primary applications of RDF graph visualization lies in the semantic web, to help visualize linked data that might be described by an ontology. Researchers and web developers use RDF visualization to understand how different data sources are connected, facilitating better data integration and retrieval. RDF visualizations can also hide this complexity and provide a single coherent graphical view of connected data that is retrieved from many different places.
3. Biological Data Analysis: In bioinformatics, RDF graph visualization is employed to represent complex biological data, such as genetic, proteomic, and metabolic pathways. Visualization helps scientists and researchers easily interpret the interactions between various biological entities, which can aid in drug discovery and disease diagnosis.
4. Knowledge Management: Organizations use RDF graph visualization for knowledge management by mapping out the relationships within their organizational knowledge bases. This can include visualizing connections between various documents, projects, and expertise within the company, enhancing information retrieval and decision-making processes.

   OGraph, an application developed with Tom Sawyer Perspectives, shows how graphs can visualize complex business context. By filtering the graph to all connections within two steps of Denise, we can see how she fits into the critical functions of the department.  You can learn more about OGraph here.


5. Social Network Analysis: RDF graph visualization is also pivotal in social network analysis, where it can help illustrate the connections between individuals or groups. This can be used for marketing analysis, community detection, and understanding social dynamics and influence patterns. The example below illustrates relationships between individuals involved in criminal activities.



   Example visualization showing the social connections in a criminal network.


6. Financial Networks: In finance, RDF graph visualization aids in the analysis of complex financial networks, including transactions, fraud detection, and credit networks. Visualizing these relationships helps in identifying patterns and anomalies that might indicate fraudulent activity or potential risks.
7. Internet of Things (IoT): As IoT grows, RDF graph visualization is becoming crucial in managing and interpreting the vast amount of data generated by interconnected devices. Visualization can help stakeholders understand the data flows, device interconnections, and potential points of failure in IoT networks or in physical systems.


   This example simulates the behavior of a commercial air distribution system from sample runtime data. Moving dashed lines means that material is flowing. Line color is used to show hot and cold material. Status symbols show that equipment is operating. These techniques can be used to explain the properties of any active system.



8. Educational Tools: RDF graph visualization is used in educational tools to help students and learners visualize complex information structures. Visually mapping out the relationships between different concepts or historical events can make learning more interactive and improve comprehension of complicated subjects.

These applications demonstrate the broad utility of RDF graph visualization in simplifying complex information, enhancing comprehension, and providing actionable insights across diverse fields. As data continues to grow in size and complexity, effective visualization tools like RDF graph visualization become increasingly important in extracting value and meaning from data sets.

Preparing Data for RDF Graph Visualization

Data preparation is a critical step in the RDF graph visualization process. It involves cleaning, structuring, and enhancing RDF data. Proper preparation not only reduces errors during visualization but also ensures that the visual output is meaningful and actionable.

RDF is a powerful and flexible tool. Like all technology, RDF can be used correctly and incorrectly, so the quality and consistency of the RDF data you are working with will have a big impact on your ability to provide the best RDF graph visualizations to achieve your goals.

The following short example is created using the Turtle notation. Regardless of the notation that is used, all rdf-formatted files contain similar references to other published ontology resources, such as OWL and RDFS. This one also contains a reference to a domain-specific ontology for Industry Foundation Classes (ifc4 prefix). The prefix used in each declaration explains where to look for the definition of that term. In this example we are creating a new (local) subclass of an ifc4:Fan, and a specific instance of that fan.

Like a database – the kinds of visualizations required to explain how the RDF data is structured are likely to be different than the visualizations required to use the resulting knowledge graph in your everyday business.

Cleaning and Structuring Data

RDF data often comes from diverse sources and can include inconsistencies, duplicates, or irrelevant details that may complicate visualization efforts. Like all flexible technologies, RDF can be used and misused, and the quality of the RDF data you have to work with is likely to be inconsistent.

Cleaning: The first step involves removing errors and inconsistencies, such as incorrect RDF triples or mismatched data types. Tools like Apache Jena or OpenRefine can be employed to automate some of these tasks, ensuring data accuracy.

Structuring: Once cleaned, structuring RDF data involves organizing it in a way that enhances its RDF graph visualization potential. This might mean selectively querying triples for better logical grouping or creating new triples to fill in missing links in the data. RDF data, like any structured data, likely requires manipulation to deliver the answers you need to extract.

Enhancing Data for Visualization

Proper preparation of RDF data is crucial not just for making it suitable for visualization but for transforming it into a rich, insightful tool that can be explored visually. Enhancing the data with additional layers of information that may not be initially present ensures that the RDF graph visualization is not only visually appealing but also rich in meaningful insights.

• Metadata Addition: Including metadata can significantly improve the understandability of a visualization. Metadata about each node and edge, such as labels or descriptions, can provide more context to the visualized data.
• Using Ontologies: Employing ontologies within RDF data can help in categorizing and linking data more effectively. Ontologies provide a framework that defines the types, properties, and interrelationships of the entities in RDF data, which can be very useful for creating more structured and informative visualizations.
• Data Linking: Linking RDF data to other datasets can enrich the original dataset with additional information, providing a broader context and enabling more comprehensive visual analyses.
• Data Transformation: Complex graphs can get very large and very detailed. Applying graph analytics with the right queries and filters will isolate the subset of your RDF Graph that is relevant to answer specific questions.

RDF Graph Visualization Tools

The effective visualization of RDF graphs relies on a range of tools that cater to different needs and preferences. Similar to databases of all kinds – the visualizations required to explain how the data is structured, or assist ontologists to design RDF datasets are likely to be vastly different than the visualizations required to use the resulting knowledge graph to solve a specific problem.

It can be challenging to choose the best tools for the users' tasks and also meet the requirements of the development and IT environments. Besides choosing a technical approach, it is important to determine whether open-source or commercial tools are best for your organization and the applications you are planning to support.

Each RDF graph visualization technology choice has unique strengths and ideal use cases, and the choice of tool often depends on the project's specific requirements, such as the complexity of the data, the desired level of interactivity, and the user's familiarity with visualization software.

Open Source Tools for RDF Graph Visualization

Since RDF is founded on the WC3 technology stack, many tools for working with and visualizing RDF are provided by and supported by the open-source community. Depending upon the nature of your development team, your business, and your application requirements, open source tools may serve your needs.

Basic Visualization tools for RDF Graphs

Gephi: Gephi is an open-source network analysis and visualization software that can be adapted for RDF data with the right plugins. It offers powerful graph analysis tools, modularity features for community detection, and dynamic data filtering. By using plugins like the Semantic Web Import, Gephi can import RDF data and utilize its robust visualization capabilities to explore complex RDF networks.

Graphviz: Graphviz is a tool for generating diagrams from textual descriptions of graphs, which can be particularly useful for formatting RDF data appropriately. It provides a variety of layout engines for different types of graph visualizations, such as hierarchical, radial, and force-directed layouts. Graphviz can create detailed visual representations of RDF triples, which is particularly effective in scenarios where structure and hierarchy are important.

Developers Tools for Visualization of RDF Graphs

R Graph Visualization: Various R packages are designed to create and manipulate complex network graphs, allowing for detailed and customizable visualizations that can reveal insights into the structure and relationships within RDF datasets. Some of the specialized graph libraries that developers can use with R include igraph, ggraph and visNetwork.

PyTorch Model Graph Visualization: PyTorch Model Graph focuses on the architectural aspects of machine learning models. This technique helps visualize the structure of neural networks where RDF data might be used, providing clarity on how data inputs are processed through different layers. Tools such as Netron, which visualize model architectures, can be adapted to show how RDF data influences model decisions, offering insights into the inner workings of complex models trained on RDF datasets.

PyTorch Computation Graph Visualization:  PyTorch's dynamic graphing capabilities can be applied to visualize computational operations and tensor transformations as they occur in real-time. This feature is particularly useful for developers and researchers working with RDF data, as it helps in debugging and optimizing RDF data processing workflows within machine learning models. Visualization tools like Torchviz and Hiddenlayer can generate graphical representations of these computation graphs, making it easier to track the flow and transformation of data through various stages of computation.

Commercial Support for RDF Visualization

When graph visualization is needed in a production capacity, many companies decide to rely on tools that have strong commercial support, and require fewer development hours and less custom coding. If your business requires a more complete and comprehensive solution to build and deploy effective and reliable graph visualizations, then Tom Sawyer Perspectives might be the right tool for your team.

Commercial tools, such as Perspectives, provide various levels of support for working with RDF data, either natively, or through integration tools that support ingestion of data from a wide variety of sources, into a common data framework.

Tom Sawyer Perspectives

Integrating Visualization Techniques

Combining different visualization tools and methods can greatly enhance the understanding and presentation of RDF data. This section will discuss strategies for integrating statistical or graph-based analytics, and RDF-specific visualization tools, to create comprehensive visualizations that cater to diverse analytical needs.

Combining Tools for Comprehensive Visualizations

1. Synergy Between Statistical Analytics and RDF Graph-Specific Tools

Overview: Integrating statistical capabilities with RDF-specific tools can provide a deeper analysis of RDF data. For instance, performing statistical analysis and RDF-specific tools to present the results can maximize both data insight and visual impact.

It is also likely that the real-time data about the operation of the system may be coming from a different data source than the RDF-based description of the connected devices.

Practical Example: Consider a network of microwave towers, which are transmitting masses of data about their operations. An RDF-based entity-relationship diagram can provide intuitive context about which devices are communicating with each other. Statistical tools, like R, or features that are part of your data processing layer, can provide information about how often devices communicate with each other and how much, or how often the processing capacity of these devices reaches a peak. This additional information can be used in the graph to illustrate where there are problem devices in that network that are consuming more resources or bandwidth than expected, and how that effects other devices in the network. Visual aspects such as color and size of nodes and edges can be used to tie the statistical information directly to the drawing elements for faster and more intuitive interpretation of the data.

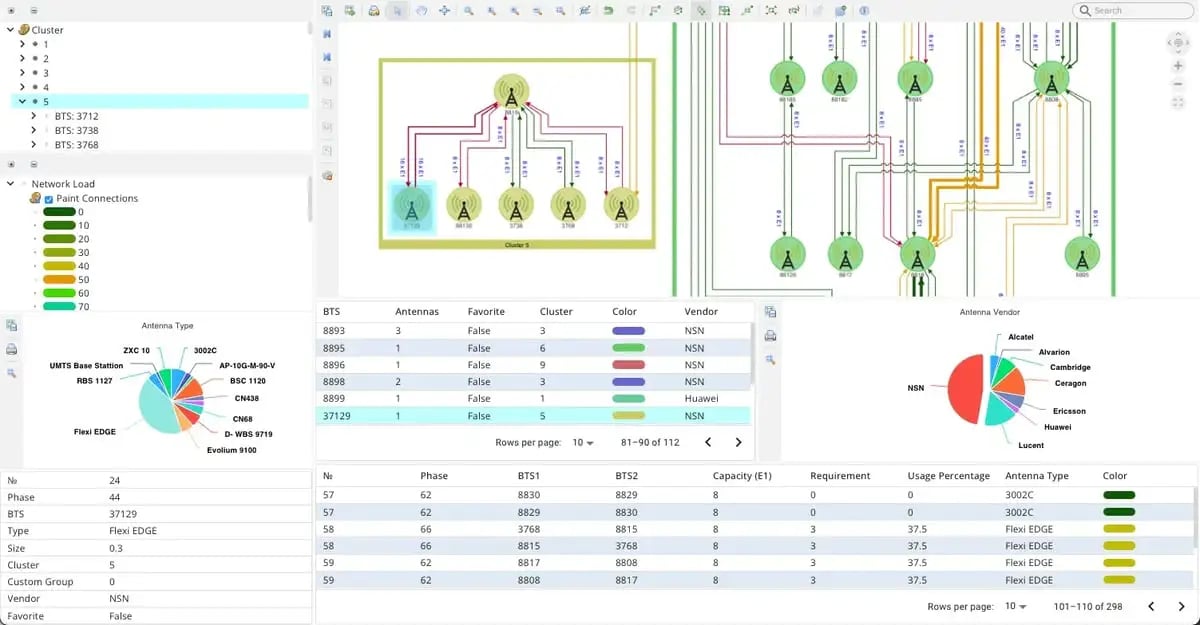

An example application showing various charts and graphs of a microwave network that illustrate processing capacity, bandwidth issues, and more.

2. Enhancing Graph Computations with Graph Visualizations

Overview: Computational or dynamic graph capabilities can be complemented by advanced graph visualization approaches. This combination is particularly useful for visualizing the flow of data through complex models and observing how modifications to the data or model affect the overall structure and outputs.

Practical Example: Use computational and analytic methods to create an in-memory computational graph for analysis, and use that data to compare a model of the world "as it is" with a model that is based on your new computations. This can be a useful tool to run "what if" computations that can show how a system will change if certain actions are taken. In this example, analytics are used to show that only two connections (blue edges) need to be compromised for the tower marked with the red flag to be disconnected from the starting node highlighted with the green flag.

Analytics showing that the connections (blue edges) that need to be compromised for the tower marked with the red flag to be disconnected from the starting node highlighted with the green flag.

Practical Advice for RDF Graph Visualization Implementation

To help you effectively implement RDF graph visualization in your projects, here are some best practices to consider:

1. Choose the Right Tool for Your Needs: Assess the specific requirements of your visualization project, including the size and complexity of your RDF data, to select the most appropriate tools. Consider factors such as usability, feature set, and the learning curve of each tool.
2. Focus on Data Quality: Before visualizing, spend adequate time on data preparation. Cleanse, structure, and enhance your RDF data to avoid misrepresentations and ensure that your visualizations are both accurate and insightful.
3. Integrate Multiple Visualization Techniques: Don't rely on a single tool or method. Combine different visualization techniques to cover all aspects of your data. For example, R can be used for detailed statistical analysis, and RDF-specific tools can be used for more general graphical representations.
4. Understand how your users need to navigate complex visualizations: RDF and graph-based visualizations provide powerful ways to navigate complex data, but each task might have very specific navigation requirements. Working with end users will tell you which navigation paths and methods will deliver the best value.
5. Continuously Refine Your Visualizations: Visualization is an iterative process. Regularly seek feedback from end-users and refine your visualizations to better meet their needs and improve data interpretability.
6. Keep Learning and Experimenting: Stay updated with the latest advancements in visualization tools and techniques. Experiment with new methods and technologies to continually enhance your visualization skills.
